| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Vehicle Interior | Section: Seat Belt | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000000U9500OX |
| Title: SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION (2008 LX570) | ||
INSPECTION

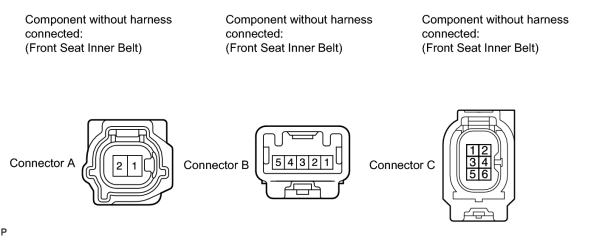

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH
(a) Check the buckle switch.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
B-4 - B-5 |
Seat belt fastened (Buckle switch is on) |
Below 1 Ω |
|
Seat belt unfastened (Buckle switch is off) |
1 MΩ or higher |
|
|
A-1 - C-4 |
Always |
Below 1 Ω |
|
A-2 - C-8 |
Always |
Below 1 Ω |
If the result is not as specified, replace the inner belt assembly.

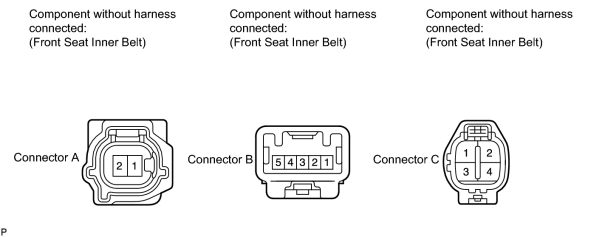

2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH
(a) Check the buckle switch.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
B-4 - B-5 |
Seat belt fastened (Buckle switch is on) |
Below 1 Ω |
|
Seat belt unfastened (Buckle switch is off) |
1 MΩ or higher |
|
|
A-1 - C-3 |
Always |
Below 1 Ω |
|
A-2 - C-4 |
Always |
Below 1 Ω |
If the result is not as specified, replace the inner belt assembly.

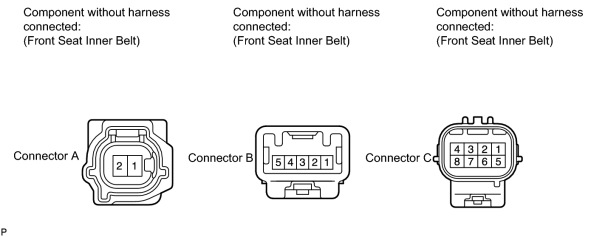

3. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (w/ Climate Control Seat System)
(a) Check the buckle switch.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
B-4 - B-5 |
Seat belt fastened (Buckle switch is on) |
Below 1 Ω |
|
Seat belt unfastened (Buckle switch is off) |
1 MΩ or higher |
|
|
A-1 - C-3 |
Always |
Below 1 Ω |
|
A-2 - C-4 |
Always |
Below 1 Ω |
If the result is not as specified, replace the inner belt assembly.
|
|
