Odo/Trip Switch Malfunction |
DESCRIPTION
The ODO/TRIP display of the meter changes each time the ODO/TRIP switch on the light control rheostat is pressed.
HINT:
For more information about changing between displays, refer to the owner's manual.

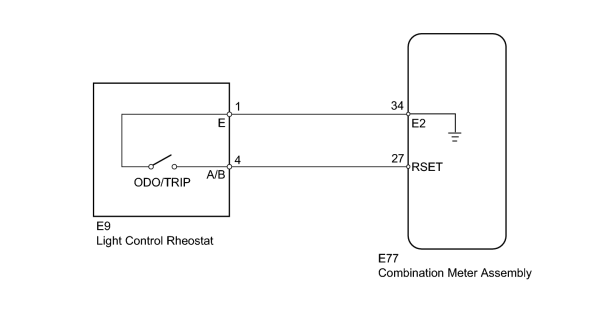

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
READ VALUE USING TECHSTREAM (LIGHT CONTROL RHEOSTAT) |
(a) Operate the Techstream according to the display and select the Data List.
Combination Meter
|
Tester Display |
Measurement Item/Range |
Normal Condition |
Diagnostic Note |
|---|---|---|---|
|
ODO/TRIP Change SW |
ODO/TRIP switch condition/ON or OFF |
ON: ODO/TRIP switch pushed OFF: ODO/TRIP switch not pushed |
- |
OK:
Switch condition (ON/OFF) can be switched by actual operation.
|
|
2. |
INSPECT LIGHT CONTROL RHEOSTAT (ODO/TRIP SWITCH) |
|
(a) Remove the light control rheostat
|
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
4 (A/B) - 1 (E) |
ODO/TRIP switch on (Pushed) |
Below 100 Ω |
|
ODO/TRIP switch off (Not pushed) |
1 MΩ or higher |
|
|
3. |
CHECK HARNESS AND CONNECTOR (COMBINATION METER - LIGHT CONTROL RHEOSTAT) |
|

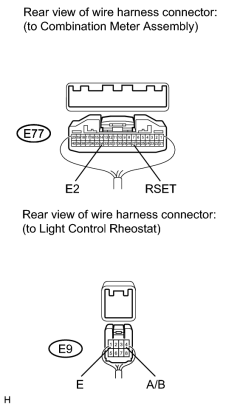

(a) Disconnect the E77 meter connector. |
(b) Disconnect the E9 switch connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
E77-27 (RSET) - E9-4 (A/B) |
Always |
Below 1 Ω |
|
E77-34 (E2) - E9-1 (E) |
||
|
E77-34 (E2) - Body ground |
||
|
E77-27 (RSET) or E9-4 (A/B) - Body ground |
Always |
10 kΩ or higher |
|
|
|
