| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Audio/Visual/Telematics | Section: Garage Door Opener | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000000VRP00ZX |
| Title: GARAGE DOOR OPENER: GARAGE DOOR OPENER SYSTEM: ON-VEHICLE INSPECTION (2008 LX570) | ||
ON-VEHICLE INSPECTION
1. INSPECT GARAGE DOOR OPENER
|
(a) Press each switch and check that the red LED turns on. If one or more of the switches does not turn on the LED, confirm normal operation of the fuse and wire harness, then replace the garage door opener. |
2. INSPECT GARAGE DOOR OPENER REGISTRATION AND TRANSMITTING
HINT:
Use the "HomeLink" tester and a tester transmitter for this test. First clear the customer's transmitter code, and then register the tester transmitter code.
|
(a) Check if the tester transmitter code was successfully registered. HINT:
If the code cannot be registered, replace the garage door opener. |
|

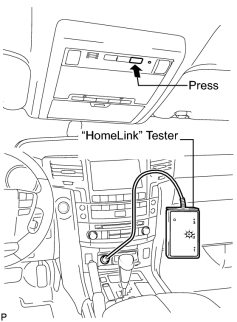

(b) Press the garage door opener switch that was registered to the tester transmitter. Check if the green LED on the "HomeLink" tester illuminates. HINT:
If the green LED does not illuminate, replace the garage door opener. |
(c) When the inspection is complete, reregister the customer's transmitter code(s) again.
|
|
