Title: PRE-COLLISION: PRE-COLLISION SYSTEM: DESCRIPTION (2008 LX570)

Power Source Circuit

DESCRIPTION

This circuit supplies power to the seat belt control ECU when the engine switch is on (IG).

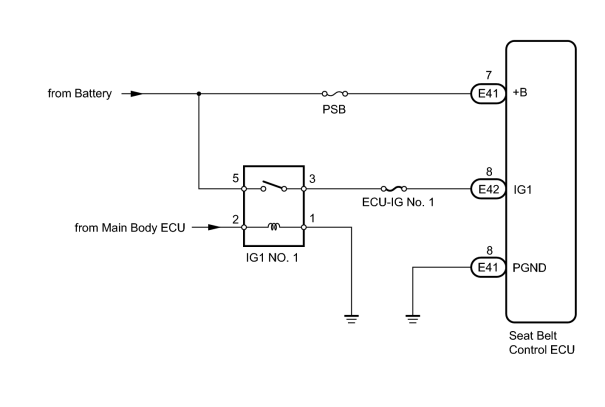

WIRING DIAGRAM



INSPECTION PROCEDURE

HINT:

Start the engine before inspection. Check the IG1 NO. 1 relay or battery if the starting system does not start.

PROCEDURE

1.

INSPECT FUSE (ECU-IG No. 1, PSB)

(a) Remove the ECU-IG No. 1 and PSB fuses from the cowl side junction block LH.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

ECU-IG No. 1 fuse

Always

Below 1 Ω

PSB fuse

OK

2.

CHECK HARNESS AND CONNECTOR (SEAT BELT CONTROL ECU - BATTERY AND BODY GROUND)


(a) Disconnect the E41 and E42 seat belt control ECU connectors.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

E42-8 (IG1) - Body ground

Engine switch on (IG)

11 to 14 V

Engine switch off

Below 1 V

E41-7 (+B) - Body ground

Always

11 to 14 V

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

E41-8 (PGND) - Body ground

Always

Below 1 Ω

OK
