Title: PRE-COLLISION: PRE-COLLISION SYSTEM: SYSTEM DIAGRAM (2008 LX570)

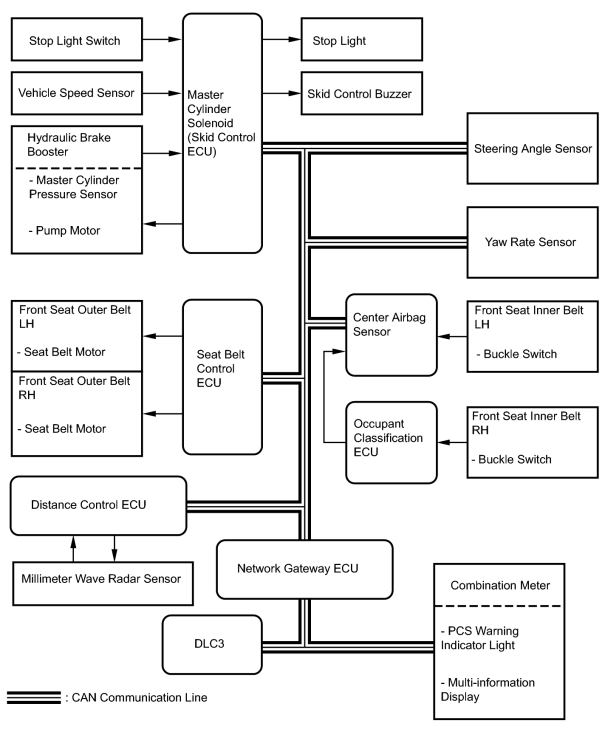

SYSTEM DIAGRAM



Communication Table

Transmitter

Receiver

Signal

Communication Line

Distance Control ECU

Seat Belt Control ECU
  • Relative vehicle speed signal
  • Vehicle-to-vehicle distance signal
  • Seat belt operation signal

CAN

Master Cylinder Solenoid (Skid Control ECU)

Seat Belt Control ECU
  • Seat belt operation signal
  • Sudden braking signal
  • VSC control signal
  • Vehicle speed signal

CAN

Center Airbag Sensor

Seat Belt Control ECU
  • Buckle switch malfunction signal
  • Driver seat belt buckle switch signal
  • Passenger seat belt buckle switch signal

CAN

Seat Belt Control ECU

Combination Meter

Pre-collision malfunction signal

CAN

Distance Control ECU

Master Cylinder Solenoid (Skid Control ECU)

Brake assist standby signal

CAN
