| Last Modified: 11-27-2007 | 1.6 C | |
| Service Category: Drivetrain | Section: Automatic Transmission/Transaxle | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000000W89044X |
| Title: AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
P2759 |
Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU) |
DESCRIPTION

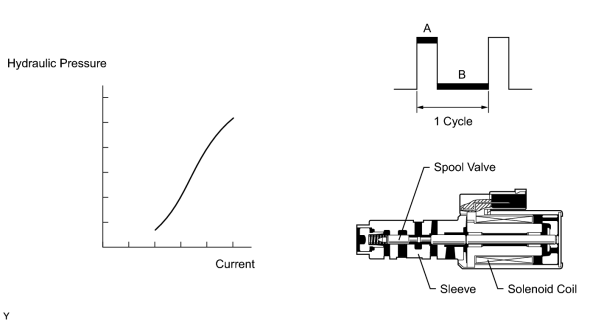

The amount of current flow to the shift solenoid valve is controlled by the duty ratio* of the ECM output signal. During the lock-up operation, if the duty ratio increases, the lock-up hydraulic pressure increases.
HINT:
*: The duty ratio is the ratio of the current ON time (A) to the total of the current ON and OFF time (A + B).
Duty Ratio (%) = A / (A + B) x 100
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
P2759 |
An open or short is detected in the shift solenoid valve SLU circuit for 1 sec. or more while driving (1 trip detection logic). |
|
Reference: Inspect using an oscilloscope.
Check the waveform of the ECM connector.
Standard:
|
Terminal No. (Symbol) |
Tool Setting |
Condition |
Specified Condition |
|---|---|---|---|
|
C53-10 (SLU+) - C53-11 (SLU-) |
5 V/DIV., 1 msec./DIV. |
5th (lock-up) or 6th (lock-up) gear |
Refer to illustration |
MONITOR DESCRIPTION
When an open or short in the shift solenoid valve SLU circuit is detected, the ECM determines that there is a malfunction. The ECM will illuminate the MIL and store this DTC.
MONITOR STRATEGY
|
Related DTCs |
P2759: Shift solenoid valve SLU/Range check |
|
Required sensors/Components |
Shift solenoid valve SLU |
|
Frequency of operation |
Continuous |
|
Duration |
1 sec. |
|
MIL operation |
Immediately |
|
Sequence of operation |
None |
TYPICAL ENABLING CONDITIONS
All
|
The monitor will run whenever the following DTCs are not stored |
None |
|
Engine switch |
On (IG) |
|
Starter |
OFF |
All of the following conditions are met: Condition (A) and (B)
Condition (A)
|
Solenoid current cut status |
Not cut |
|
Battery voltage |
11 V or higher |
|
Target current |
0.1 A or higher |
Condition (B)
|
Battery voltage |
8 V or higher |
TYPICAL MALFUNCTION THRESHOLDS
When either condition below is met: Condition (A) or (B)
Condition (A)
|
Solenoid status from Hybrid IC |
Failure |
Condition (B)
|
Hybrid IC status |
Failure |
COMPONENT OPERATING RANGE
|
Output signal duty |
Less than 100% |

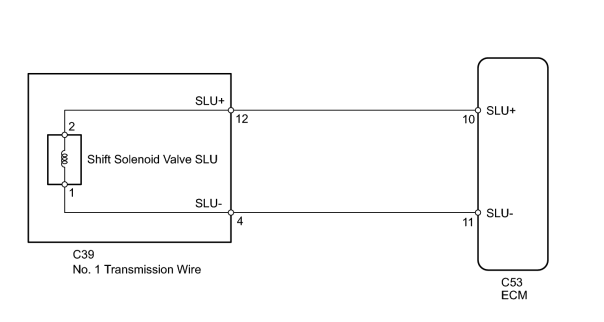

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT NO. 1 TRANSMISSION WIRE (SHIFT SOLENOID VALVE SLU) |
|
(a) Disconnect the C39 No. 1 transmission wire connector. |
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
12 (SLU+) - 4 (SLU-) |
20°C (68°F) |
5.0 to 5.6 Ω |
|
12 (SLU+) - Body ground |
Always |
10 kΩ or higher |
|
4 (SLU-) - Body ground |
Always |
10 kΩ or higher |
|
|
2. |
CHECK HARNESS AND CONNECTOR (NO. 1 TRANSMISSION WIRE - ECM) |
(a) Disconnect the C53 ECM connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
C53-10 (SLU+) - C53-11 (SLU-) |
20°C (68°F) |
5.0 to 5.6 Ω |
|
C53-10 (SLU+) - Body ground |
Always |
10 kΩ or higher |
|
C53-11 (SLU-) - Body ground |
Always |
10 kΩ or higher |
|
|
3. |
INSPECT SHIFT SOLENOID VALVE SLU |
(a) Remove shift solenoid valve SLU.

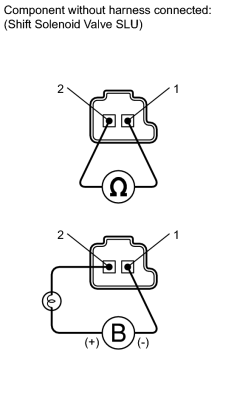

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 - 2 |
20°C (68°F) |
5.0 to 5.6 Ω |
(c) Apply battery voltage (12 V) to the shift solenoid valve and check that the valve moves and makes an operating noise.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Valve moves and makes an operating noise |
|
|
|
