Title: AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: DESCRIPTION (2008 LX570)

DTC

P0982

Shift Solenoid "D" Control Circuit Low (Shift Solenoid Valve S4)

DTC

P0983

Shift Solenoid "D" Control Circuit High (Shift Solenoid Valve S4)

DESCRIPTION

Shifting from 1st to 6th is performed in combination with the ON and OFF operation of shift solenoid valves SL1, SL2, S1, S2, S3, S4 and SR, which are controlled by the ECM. If an open or short circuit occurs in any of the shift solenoid valves, the ECM controls the remaining normal shift solenoid valves to allow the vehicle to be operated safely. Also, the ECM stops sending current to the open or short circuited shift solenoid valve AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: FAIL-SAFE CHART (2008 LX570) .

DTC Code

DTC Detection Condition

Trouble Area

P0982

The ECM detects a short in the shift solenoid valve S4 circuit 2 times when shift solenoid valve S4 is operated (1 trip detection logic).
  • Short in shift solenoid valve S4 circuit
  • Shift solenoid valve S4
  • ECM

P0983

The ECM detects an open in the shift solenoid valve S4 circuit 2 times when shift solenoid valve S4 is not operated (1 trip detection logic).
  • Open in shift solenoid valve S4 circuit
  • Shift solenoid valve S4
  • ECM

MONITOR DESCRIPTION

These DTCs indicate an open or short in the shift solenoid valve S4 circuit. When there is an open or short circuit in any shift solenoid valve circuit, the ECM detects the problem, illuminates the MIL and stores the DTC. When shift solenoid valve S4 is ON, if its resistance is 8 Ω or less, the ECM determines there is a short in the shift solenoid valve S4 circuit.

When shift solenoid valve S4 is OFF, if its resistance is 100 kΩ or higher, the ECM determines there is an open in the shift solenoid valve S4 circuit AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: FAIL-SAFE CHART (2008 LX570) .

MONITOR STRATEGY

Related DTCs

P0982: Shift solenoid valve S4/Range check (Low resistance)

P0983: Shift solenoid valve S4/Range check (High resistance)

Required sensors/Components

Shift solenoid valve S4

Frequency of operation

Continuous

Duration

0.128 sec. or more

MIL operation

Immediately

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

All

The monitor will run whenever the following DTCs are not stored

None

Battery voltage

8 V or higher

Engine switch

On (IG)

Starter

OFF

P0982: Range Check (Low Resistance)

Shift solenoid valve S4

ON

P0983: Range Check (High Resistance)

Shift solenoid valve S4

OFF

TYPICAL MALFUNCTION THRESHOLDS

P0982: Range Check (Low Resistance)

Shift solenoid valve S4 resistance

8 Ω or less

P0983: Range Check (High Resistance)

Shift solenoid valve S4 resistance

100 kΩ or higher

COMPONENT OPERATING RANGE

Shift solenoid valve S4 resistance

11 to 15 Ω at 20°C (68°F)

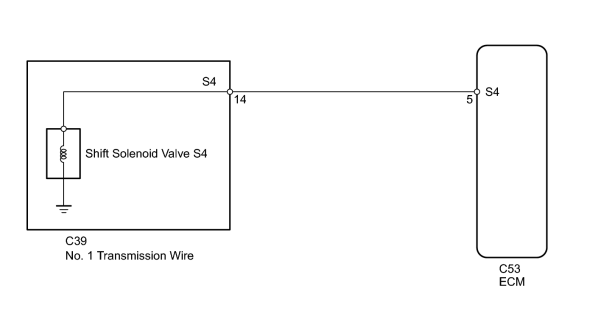

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

Shift solenoid valve S4 is turned ON/OFF normally when the shift lever is in D:

ECM gear shift command

1st

2nd

3rd

4th

5th

6th

Shift solenoid valve S4

OFF

OFF

OFF

OFF

ON

ON

PROCEDURE

1.

INSPECT NO. 1 TRANSMISSION WIRE (SHIFT SOLENOID VALVE S4)

(a) Disconnect the C39 No. 1 transmission wire connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

14 (S4) - Body ground

20°C (68°F)

11 to 15 Ω
OK

2.

CHECK HARNESS AND CONNECTOR (NO. 1 TRANSMISSION WIRE - ECM)


(a) Disconnect the C53 ECM connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C53-5 (S4) - Body ground

20°C (68°F)

11 to 15 Ω
OK

3.

INSPECT SHIFT SOLENOID VALVE S4

(a) Remove shift solenoid valve S4.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Shift solenoid valve S4 connector terminal - Shift solenoid valve S4 body

20°C (68°F)

11 to 15 Ω

(c) Apply battery voltage (12 V) to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:

Measurement Condition

Specified Condition
  • Battery positive (+) → Shift solenoid valve S4 connector
  • Battery negative (-) → Shift solenoid valve S4 body

Valve moves and makes an operating noise
OK
