| Title: 3UR-FE ENGINE CONTROL: SFI SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
P0171 |
System Too Lean (Bank 1) |
|
DTC |
P0172 |
System Too Rich (Bank 1) |
|
DTC |
P0174 |
System Too Lean (Bank 2) |
|
DTC |
P0175 |
System Too Rich (Bank 2) |
DESCRIPTION
The fuel trim is related to the feedback compensation value, not to the basic injection time. The fuel trim consists of both the short-term and the long-term fuel trims.
The short-term fuel trim is fuel compensation that is used to constantly maintain the air-fuel ratio at stoichiometric levels. The signal from the Air-Fuel Ratio (A/F) sensor indicates whether the air-fuel ratio is rich or lean compared to the stoichiometric ratio. This triggers a reduction in the fuel injection volume if the air-fuel ratio is rich and an increase in the fuel injection volume if it is lean.
Factors such as individual engine differences, wear over time and changes in operating environment cause short-term fuel trim to vary from the central value. The long-term fuel trim, which controls overall fuel compensation, compensates for long-term deviations in the fuel trim from the central value caused by the short-term fuel trim compensation.
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
P0171 P0174 |
With a warm engine and stable air-fuel ratio feedback, the fuel trim is considerably in error to the lean side (2 trip detection logic). |
|
|
P0172 P0175 |
With a warm engine and stable air-fuel ratio feedback, the fuel trim is considerably in error to the rich side (2 trip detection logic). |
|
HINT:
- When DTC P0171 or P0174 is stored, the actual air-fuel ratio is on the lean side. When DTC P0172 or P0175 is stored, the actual air-fuel ratio is on the rich side.
- If the vehicle runs out of fuel, the air-fuel ratio is lean and DTC P0171 or P0174 may be stored. The MIL is then illuminated.
- When the total of the short-term and long-term fuel trim values is within the malfunction threshold (and the engine coolant temperature is higher than 75°C [167°F]), the system is functioning normally.
MONITOR DESCRIPTION
Under closed loop fuel control, fuel injection volumes that deviate from those estimated by the ECM cause changes in the long-term fuel trim compensation value. The long-term fuel trim is adjusted when there are persistent deviations in the short-term fuel trim values. Deviations from the ECM estimated fuel injection volumes also affect the average fuel trim learning value, which is a combination of the average short-term fuel trim (fuel feedback compensation value) and the average long-term fuel trim (learning value of the air-fuel ratio). If the average fuel trim learning value exceeds the malfunction threshold, the ECM interprets this as a fault in the fuel system and stores DTC(s).
Example:

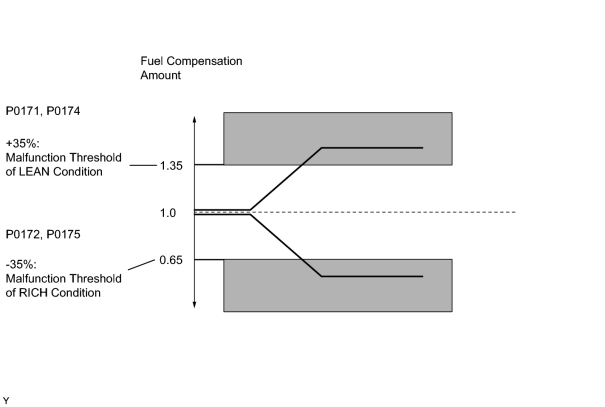

The average fuel trim learning value is +35% or more or -35% or less, the ECM interprets this as a fuel system malfunction.
MONITOR STRATEGY
|
Related DTCs |
P0171: Fuel trim lean (for Bank 1) P0172: Fuel trim rich (for Bank 1) P0174: Fuel trim lean (for Bank 2) P0175: Fuel trim rich (for Bank 2) |
|
Required Sensors/Components (Main) |
Fuel system |
|
Required Sensors/Components (Related) |
A/F sensor, Mass air flow meter, Crankshaft position sensor |
|
Frequency of Operation |
Continuous |
|
Duration |
Within 10 seconds |
|
MIL Operation |
2 driving cycles |
|
Sequence of Operation |
None |
TYPICAL ENABLING CONDITIONS
|
Monitor runs whenever following DTCs not stored |
P0010, P0020 (VVT OCV) P0011 (VVT System 1 - Advance) P0012 (VVT System 1 - Retard) P0021 (VVT System 2 - Advance) P0022 (VVT System 2 - Retard) P0031, P0032, P0051, P0052 (A/F Sensor Heater - Sensor 1) P0102 - P0103 (MAF meter) P0115 - P0118 (ECT sensor) P0120 - P0223, P2135 (TP sensor) P0125 (Insufficient ECT for Closed Loop) P0335 (CKP sensor) P0351 - P0358 (Igniter) P0500 (VSS) P2440 (AIR control valve stuck open) P2441 (AIR control valve stuck close) P2444 (AIP stuck On) P2445 (AIP stuck Off) |
|
Fuel system status |
Closed loop |
|
Battery voltage |
11 V or higher |
|
Either of following conditions 1 or 2 set |
- |
|
1. Engine speed |
Less than 1,100 rpm |
|
2. Intake air amount per revolution |
0.36 g/rev or more |
|
Catalyst monitor |
Not executed |
TYPICAL MALFUNCTION THRESHOLDS
|
Purge-cut |
Executing |
|
Either of following conditions 1 or 2 met |
- |
|
1. Average of short-term fuel trim and long-term fuel trim |
35% or more (varies with ECT) |
|
2. Average of short-term fuel trim and long-term fuel trim |
-35% or less (varies with ECT) |
WIRING DIAGRAM
Refer to DTC P2195
.
INSPECTION PROCEDURE
HINT:
- Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
- A low A/F sensor voltage could be caused by a rich air-fuel mixture. Check for conditions that would cause the engine to run rich.
- A high A/F sensor voltage could be caused by a lean air-fuel mixture. Check for conditions that would cause the engine to run lean.
PROCEDURE
|
1. |
CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0171, P0172, P0174 OR P0175) |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(d) Read DTCs.
Result
|
Result |
Proceed to |
|---|---|
|
P0171, P0172, P0174 or P0175 is output |
A |
|
P0171, P0172, P0174 or P0175 and other DTCs are output |
B |
HINT:
If any DTCs other than P0171, P0172, P0174 or P0175 are output, troubleshoot those DTCs first.
|
|
2. |
PERFORM ACTIVE TEST USING TECHSTREAM (A/F CONTROL) |
(a) Connect the Techstream to the DLC3.
(b) Start the engine and turn the Techstream on.
(c) Warm up the engine at an engine speed of 2,500 rpm for approximately 90 seconds.
(d) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume for A/F Sensor.
(e) Perform the Control the Injection Volume for A/F Sensor operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume).
(f) Monitor the output voltages of A/F and HO2 sensors (AFS B1S1 and O2S B1S2 or AFS B2S1 and O2S B2S2) displayed on the Techstream.
Result:
The A/F sensor reacts in accordance with increases and decreases in the fuel injection volume:
+25% = Rich output
Below 3.0 V
-12.5% = Lean output
Higher than 3.35 V
NOTICE:
The A/F sensor has an output delay of a few seconds and the HO2 sensor has a maximum output delay of approximately 20 seconds.
|
Case |
A/F Sensor (Sensor 1) Output Voltage |
HO2 Sensor (Sensor 2) Output Voltage |
Main Suspected Trouble Area |
|---|---|---|---|
|
1 |
|
|
- |
|
2 |
|
|
|
|
3 |
|
|
|
Following the Control the Injection Volume for A/F Sensor procedure enables technicians to check and graph the voltage outputs of both the A/F and HO2 sensors.
To display the graph, enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume for A/F Sensor / A/F Control System / AFS B1 S1 and O2S B1 S2 or AFS B2 S1 and O2S B2 S2.
Result
|
Result |
Proceed to |
|---|---|
|
Case 1 |
C |
|
Case 2 |
B |
|
Case 3 |
A |
|
|
3. |
INSPECT MASS AIR FLOW METER |
(a) Inspect the mass air flow meter
.
|
|
4. |
READ VALUE USING TECHSTREAM (COOLANT TEMP) |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Enter the following menus: Powertrain / Engine and ECT / Data List / All Data / Coolant Temp.
(d) Read the Coolant Temp twice, when the engine is both cold and warmed up.
Standard:
With cold engine: Same as ambient air temperature.
With warm engine: Between 75°C and 100°C (167°F and 212°F).
|
|
5. |
CHECK PCV HOSE CONNECTIONS |
(a) Check the PCV hose connections
.
OK:
PCV hose is connected correctly and is not damaged.
|
|
6. |
CHECK AIR INDUCTION SYSTEM |
(a) Check the air induction system for vacuum leakage
.
OK:
No leakage from air induction system.
|
|
7. |
CHECK FOR SPARKS AND IGNITION
|
|
|
8. |
CHECK FOR EXHAUST GAS LEAK |
(a) Check for exhaust gas leakage.
OK:
No gas leakage.
|
|
9. |
CHECK FUEL PRESSURE |
(a) Check the fuel pressure
.
|
|
10. |
INSPECT FUEL INJECTOR (INJECTION AND VOLUME) |
(a) Check the injection volume
.
|
|
11. |
INSPECT AIR-FUEL RATIO SENSOR (HEATER RESISTANCE)
|
|
|
12. |
INSPECT INTEGRATION RELAY (A/F RELAY)
|
|
|
13. |
CHECK HARNESS AND CONNECTOR (A/F SENSOR - ECM)
|
|
|
14. |
REPLACE AIR FUEL RATIO SENSOR |
(a) Replace the air fuel ratio sensor
.
|
|
15. |
PERFORM CONFIRMATION DRIVING PATTERN |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Clear DTCs
.
(d) Switch the ECM from normal mode to check mode using the Techstream
.
(e) Start the engine and warm it up with all the accessories switched off.

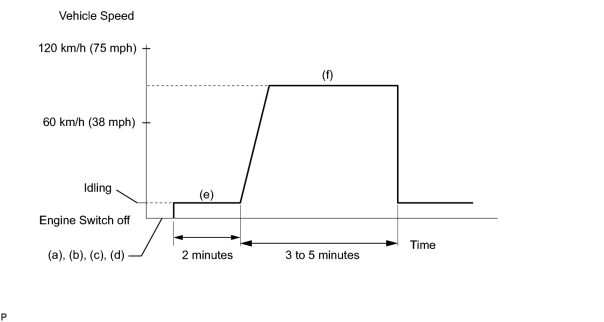

(f) Drive the vehicle at between 60 km/h and 120 km/h (38 mph and 75 mph) and at an engine speed of between 1,400 rpm and 3,200 rpm for 3 to 5 minutes.
HINT:
If the system is still malfunctioning, the MIL will be illuminated during step (f).
NOTICE:
If the conditions in this test are not strictly followed, no malfunction will be detected.
|
|
16. |
CHECK WHETHER DTC OUTPUT RECURS (DTC P0171, P0172, P0174 OR P0175) |
(a) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.
(b) Read DTCs.
Result
|
Result |
Proceed to |
|---|---|
|
No DTC is output |
A |
|
P0171, P0172, P0174 or P0175 is output |
B |
|
|
|
