| Last Modified: 11-27-2007 | 1.6 U | |
| Service Category: Suspension | Section: Tire Pressure Monitoring | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000000XMN020X |
| Title: TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING SYSTEM: SYSTEM DIAGRAM (2008 LX570) | ||

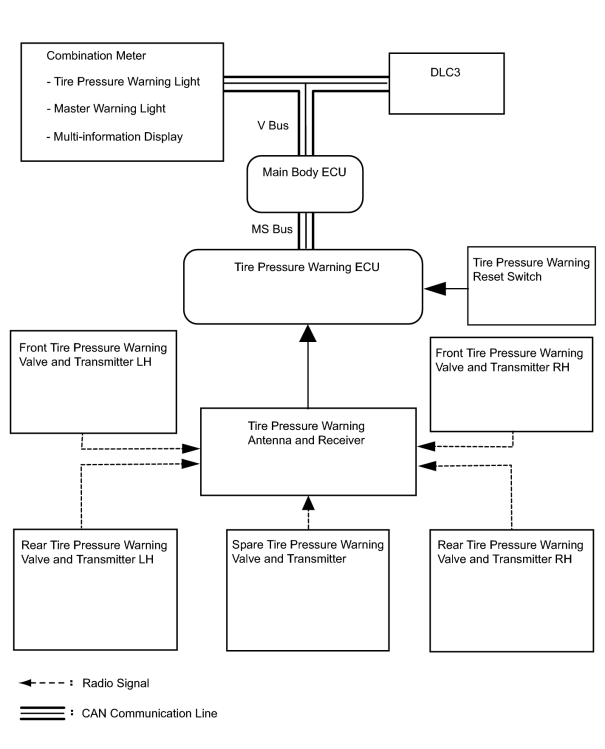

SYSTEM DIAGRAM
HINT:
The tire pressure warning valve and transmitter sends information on the temperature inside the tire, the ID, and the tire pressure.
|
|
