1. CHECK POWER RETRACTABLE MIRROR

(a) Turn the engine switch on (ACC).

(b) At each position of the outer mirror body, check the retractable mirror operation when operating the retract switch of the outer mirror. (1) Move the mirrors to the driving position. (2) Push the mirror retract switch to the fold position. (3) Check that the right and left mirrors move from the driving position to the retracted position. (4) Move the mirrors to the driving position. (5) Move one of the mirrors to the forward position by hand. (6) Push the mirror retract switch to the fold position. (7) Check that the mirror moves from the forward position to the retracted position. (8) Check that the other mirror moves from the driving position to the retracted position. (9) Move the mirrors to the driving position. (10) Move one of the mirrors to the retracted position by hand. (11) Push the mirror retract switch to the fold position. (12) Check that the mirror moves from the driving position to the retracted position. (13) Move the mirrors to the retracted position. (14) Push the mirror retract switch to the return position. (15) Check that the right and left mirrors move from the retracted position to the driving position. (16) Move the mirrors to the retracted position. (17) Move one of the mirrors to the driving position by hand. (18) Push the mirror retract switch to the return position. (19) Check that the mirror moves from the retracted position to the driving position.

(c) Check the operation of the outer mirror body in relation to mirror retract switch operations and engine switch condition changes.

(1) When the mirror body is operating, turn the engine switch off and check that the mirror operation stops immediately.

(2) Repeat the step above. This time, turn the engine switch on (ACC) and press the mirror retract switch in the opposite direction that the mirror is operating. Check that the mirror operates in the opposite direction.

(d) Check the operation of the outer mirror body when it is restrained by an obstacle.

(1) When the mirror body is moving to the retracted or driving position, restrain the mirror body by hand. Check that the mirror stops moving.

(2) With the mirror body stopped partway, push the mirror retract switch in the opposite direction that the mirror was operating. Check that the mirror body moves in the opposite direction.

2. CHECK REVERSE-SHIFT LINKED OPERATION OF MIRRORS

(a) Turn the engine switch on (IG).

(b) Set the mirror switch to L or R.

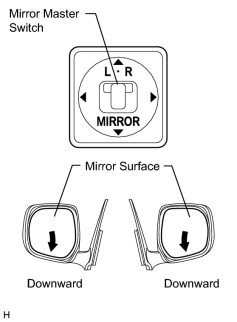

(c) Check that the mirror faces downward when the shift lever is moved to R.

(d) When the shift lever is not in R, or the mirror switch is in the neutral position (off), check that the outer rear view mirror returns to the driving position.

3. CHECK MIRROR HEATER

(a) Turn the engine switch on (IG).

(b) Check that pressing the rear defogger switch illuminates the indicator and warms the mirror surface.

(c) Check that after approximately 15 minutes, the indicator light turns off and the mirror heater deactivates.
