| Title: STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
B2610 |
Tilt Position Sensor or Tilt Motor Circuit Malfunction |
DESCRIPTION
The tilt motor is operated by the power source voltage supplied from the multiplex tilt and telescopic ECU and tilts the steering column up and down. The tilt position sensor (Hall IC) in the tilt motor detects the tilt angle of the steering column and outputs a signal to the CPU based on that tilt.
HINT:

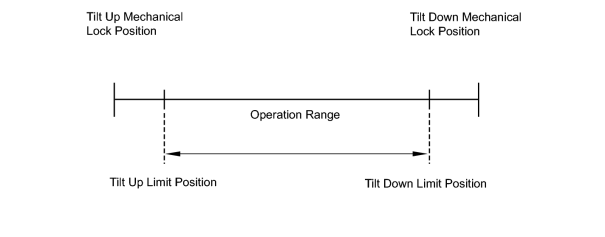

Limit positions can be confirmed on the screen of the Techstream.
|
DTC Code |
Detection Condition |
Trouble Area |
|---|---|---|
|
B2610 |
The tilt operation stops within the operation range while operating. |
|

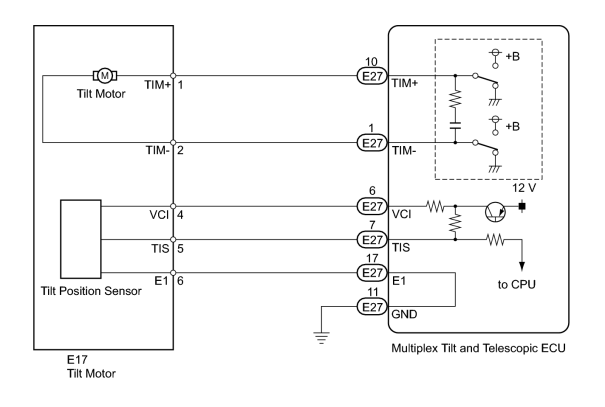

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
PERFORM ACTIVE TEST USING TECHSTREAM (TILT UP/DOWN) |
(a) Select the Active Test, use the Techstream to generate a control command, and then check that the steering wheel tilts up and down.
Tilt & Telescopic
|
Tester Display |
Test Part |
Control Range |
Diagnostic Note |
|---|---|---|---|
|
Tilt Operation |
Tilt operation |
Up/Down |
- |
OK:
Steering wheel tilts up (down).
|
|
2. |
CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TILT MOTOR) |

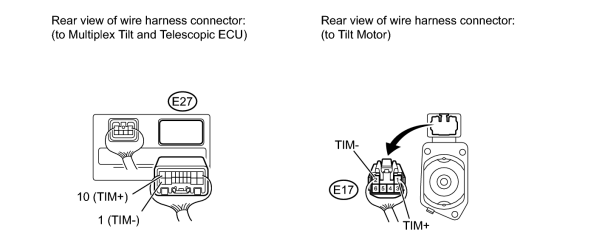

(a) Disconnect the E27 connector from the multiplex tilt and telescopic ECU.
(b) Disconnect the E17 connector from the tilt motor.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
E27-10 (TIM+) - E17-1 (TIM+) |
Always |
Below 1 Ω |
|
E27-1 (TIM-) - E17-2 (TIM-) |
Always |
Below 1 Ω |
|
E27-10 (TIM+) - Body ground |
Always |
10 kΩ or higher |
|
E27-1 (TIM-) - Body ground |
Always |
10 kΩ or higher |
|
|
3. |
INSPECT TILT MOTOR |

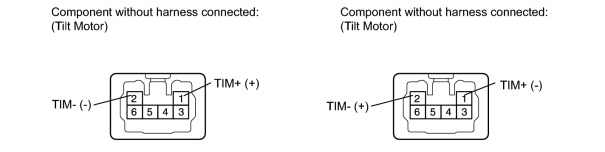

(a) Apply 12 V battery voltage to the tilt motor connector. Then check the steering wheel tilt operation.
OK
|
Measurement Condition |
Specified Condition |
|---|---|
|
12 V battery positive (+) lead → Terminal E17-1 (TIM+) 12 V battery negative (-) lead → Terminal E17-2 (TIM-) |
The steering wheel tilts up. |
|
12 V battery positive (+) lead → Terminal E17-2 (TIM-) 12 V battery negative (-) lead → Terminal E17-1 (TIM+) |
The steering wheel tilts down. |
|
|
4. |
CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TILT POSITION SENSOR) |

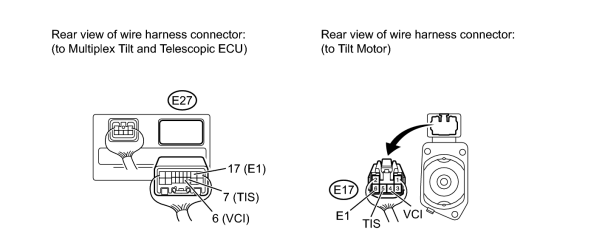

(a) Disconnect the E27 connector from the multiplex tilt and telescopic ECU.
(b) Disconnect the E17 connector from the tilt motor.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
E27-6 (VCI) - E17-4 (VCI) |
Always |
Below 1 Ω |
|
E27-7 (TIS) - E17-5 (TIS) |
Always |
Below 1 Ω |
|
E27-17 (E1) - E17-6 (E1) |
Always |
Below 1 Ω |
|
E27-6 (VCI) - Body ground |
Always |
10 kΩ or higher |
|
E27-7 (TIS) - Body ground |
Always |
10 kΩ or higher |
|
E27-17 (E1) - Body ground |
Always |
10 kΩ or higher |
|
|
5. |
CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND) |
|
(a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
|
|
|
6. |
CHECK MULTIPLEX TILT AND TELESCOPIC ECU (VCI, TIS TERMINAL VOLTAGE) |
|
(a) Reconnect the E27 connector to the multiplex tilt and telescopic ECU. |
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
E17-4 (VCI) - E17-6 (E1) |
Engine switch on (IG) |
8 to 16 V |
|
E17-5 (TIS) - E17-6 (E1) |
Engine switch on (IG) |
8 to 16 V |
|
|
7. |
CHECK TILT POSITION SENSOR |
|
(a) Reconnect the E17 connector to the tilt motor. |
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
E27-7 (TIS) - E27-17 (E1) |
Steering tilting up or tilting down |
Pulse generation High: 8 to 16 V Low: Below 1 V |
|
|
|
