Title: STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: SYSTEM DIAGRAM (2008 LX570)

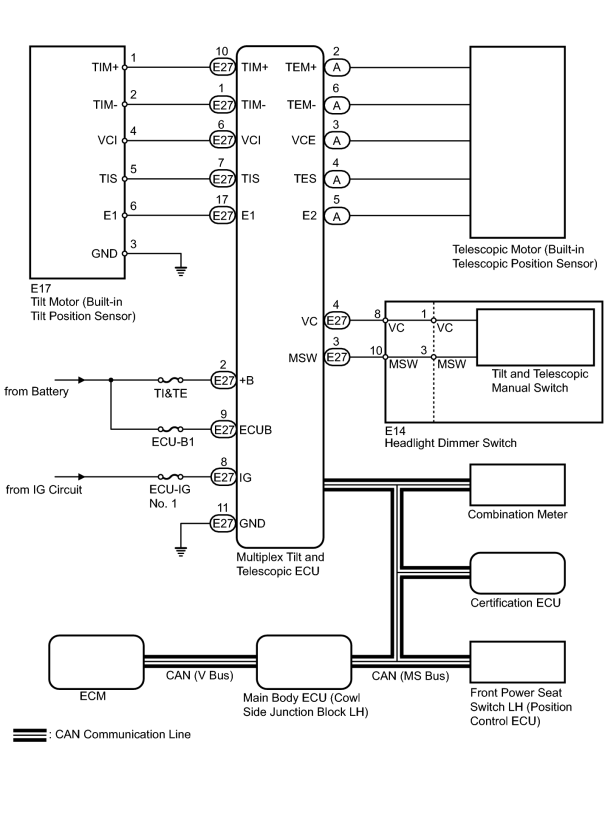

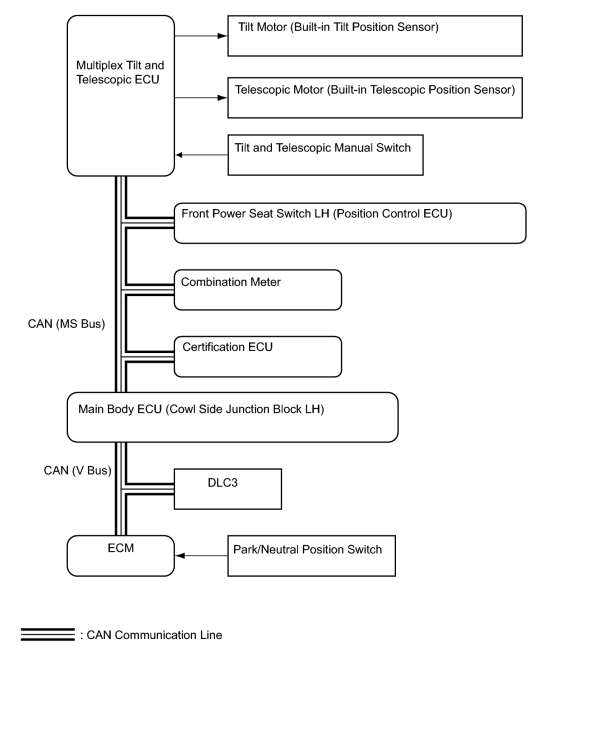

SYSTEM DIAGRAM





Communication Table:

Sender

Receiver

Signal

Line

Main Body ECU

Multiplex Tilt and Telescopic ECU
  • Engine switch signal
  • Key switch signal
  • Key signal for push start system

CAN

Multiplex Tilt and Telescopic ECU

Front Power Seat Switch LH (Position Control ECU)
  • Tilt and telescopic execution signal
  • Tilt and telescopic completion signal

CAN

Front Power Seat Switch LH (Position Control ECU)

Multiplex Tilt and Telescopic ECU
  • Memory command of memory 1 for driver seat
  • Memory command of memory 2 for driver seat
  • Play command of memory 1 for driver seat
  • Play command of memory 2 for driver seat
  • Start signal to play tilt and telescopic steering
  • Stop signal to play tilt and telescopic steering

CAN

Combination Meter ECU

Multiplex Tilt and Telescopic ECU

Vehicle speed signal

CAN

Tilt and Telescopic Manual Switch

Multiplex Tilt and Telescopic ECU

Tilt and telescopic manual switch signal

Serial
