IG Power Source Circuit |
DESCRIPTION
When the engine switch is turned on (IG), positive (+) battery voltage is applied to the certification ECU (smart key ECU assembly).

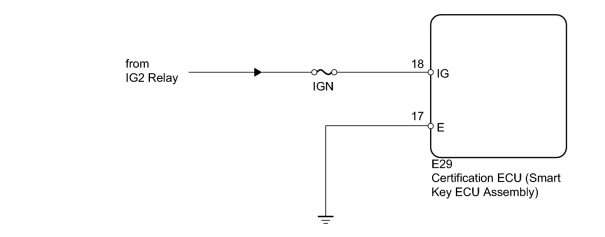

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK BASIC FUNCTION (POWER SOURCE MODE FUNCTION) |
(a) Check the basic function of the power source mode function.
OK:
Basic function operates normally.
|
|
2. |
INSPECT FUSE (IGN) |
(a) Remove the IGN fuse from the engine room relay block.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
IGN fuse |
Always |
Below 1 Ω |
|
|
3. |
CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU [SMART KEY ECU ASSEMBLY] - BATTERY AND BODY GROUND) |
(a) Disconnect the E29 ECU connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
E29-17 (E) - Body ground |
Always |
Below 1 Ω |
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
E29-18 (IG) - Body ground |
Engine switch on (IG) |
11 to 14 V |
|
|
|
