- Harness or connector
- Steering actuator
- Steering control ECU
| Last Modified: 11-27-2007 | 1.6 C | |
| Service Category: Steering | Section: Steering Column | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000000YU800IX |
| Title: VARIABLE GEAR RATIO STEERING: VARIABLE GEAR RATIO STEERING SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
C15A5/65 |
Actuator Malfunction |
DESCRIPTION
If the steering control ECU detects a malfunction in the lock mechanism, it will turn the master warning light on, store DTC C15A5/65, and stop VGRS operation.
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
C15A5/65 |
The steering control ECU detects that the LG terminal voltage is abnormal. |
|

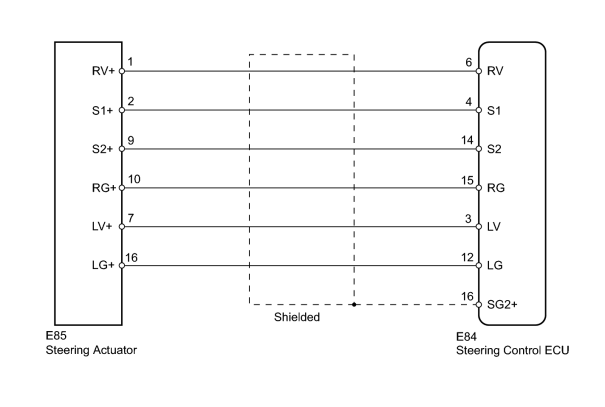

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |

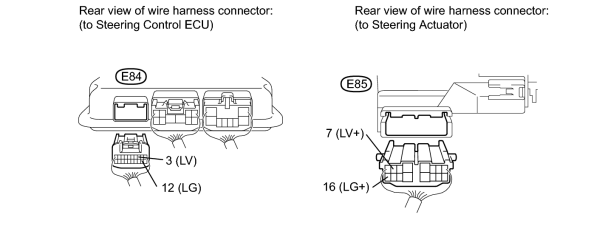

CHECK HARNESS AND CONNECTOR (STEERING CONTROL ECU - STEERING ACTUATOR) |
(a) Disconnect the E84 steering control ECU connector.
(b) Disconnect the E85 steering actuator connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
E84-3 (LV) - E85-7 (LV+) |
Always |
Below 1 Ω |
|
E84-12 (LG) - E85-16 (LG+) |
||
|
E84-3 (LV) - Body ground |
Always |
10 kΩ or higher |
|
E84-12 (LG) - Body ground |
(d) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
E84-3 (LV) - Body ground |
Engine switch on (IG) |
Below 1 V |
|
E84-12 (LG) - Body ground |
|
|
2. |
CHECK STEERING ACTUATOR (STEERING CONTROL ECU - STEERING ACTUATOR) |
(a) Disconnect the E84 steering control ECU connector.
(b) Reconnect the E85 steering actuator connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
E84-3 (LV) - E84-12 (LG) |
Always |
10 to 100 Ω |
|
E84-3 (LV) - Body ground |
Always |
10 kΩ or higher |
|
E84-12 (LG) - Body ground |
|
|
|
