Title: LIGHTING (EXT): LIGHTING SYSTEM: DESCRIPTION (2008 LX570)

DTC

B2412

Headlight Swivel Motor LH Malfunction

DTC

B2413

Headlight Swivel Motor RH Malfunction

DESCRIPTION

The swivel motor receives a signal from the AFS ECU to operate and sends a signal indicating the direction of the headlight and condition of the headlight swivel motor to the AFS ECU.

DTC Code

DTC Detection Condition

Trouble Area

B2412

When either condition below is met:

  • Malfunction in the headlight swivel motor LH.
  • Open or short in the headlight swivel motor LH circuit.
  • Headlight swivel motor LH
  • Harness or connector
  • AFS ECU

B2413

When either condition below is met:

  • Malfunction in the headlight swivel motor RH.
  • Open or short in the headlight swivel motor RH circuit.
  • Headlight swivel motor RH
  • Harness or connector
  • AFS ECU

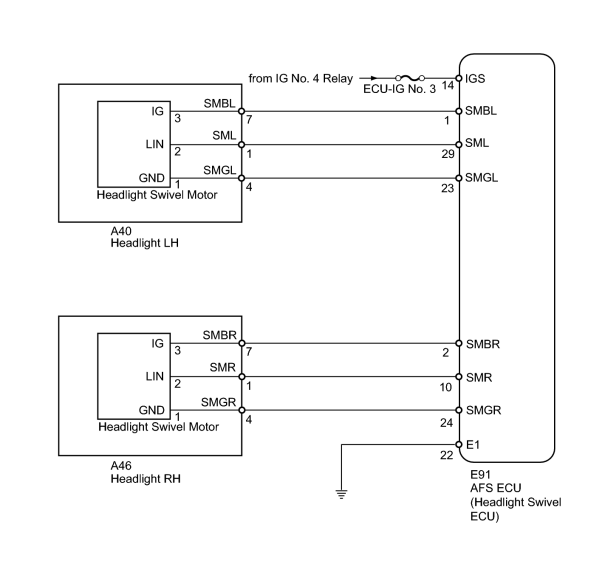

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

Perform a visual check of the headlight (swivel motor) before replacing it.

PROCEDURE

1.

CHECK FOR DTC

(a) Clear the DTCs LIGHTING (EXT): LIGHTING SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

(b) Check for DTCs LIGHTING (EXT): LIGHTING SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

OK:

DTC B2412 or B2413 output does not occur.

OK

2.

PERFORM ACTIVE TEST USING TECHSTREAM (SWIVEL MOTOR)

(a) Using the Techstream, perform the Active Test.

AFS

Tester Display

Test Part

Control Range

Diagnostic Note

Drive Swivel Motor RH

Swivel motor RH right direction rotation

OFF/RIGHT

-

Drive Swivel Motor RH

Swivel motor RH left direction rotation

OFF/LEFT

-

Drive Swivel Motor LH

Swivel motor LH left direction rotation

OFF/LEFT

-

Drive Swivel Motor LH

Swivel motor LH right direction rotation

OFF/RIGHT

-

OK:

Swivel motors operate normally.

OK

3.

CHECK HEADLIGHT SWIVEL MOTOR (OPERATION)

(a) Temporarily replace the headlight with a new or normally functioning one.

(b) Check for DTCs LIGHTING (EXT): LIGHTING SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

OK:

DTC B2412 or B2413 output does not occur.

OK

4.

CHECK HARNESS AND CONNECTOR (AFS ECU - BATTERY AND BODY GROUND)


(a) Disconnect the E91 ECU connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

E91-14 (IGS) - Body ground

Always

11 to 14 V

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

E91-22 (E1) - Body ground

Always

Below 1 Ω
OK

5.

CHECK HARNESS AND CONNECTOR (AFS ECU - HEADLIGHT)

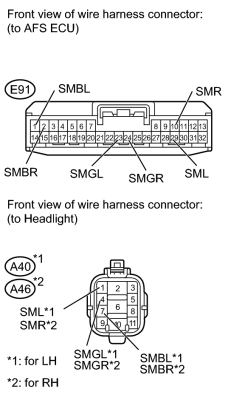

(a) Disconnect the E91 ECU connector.

(b) Disconnect the A40 and A46 light connectors.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

for LH

for RH

Tester Connection

Condition

Specified Condition

E91-1 (SMBL) - A40-7 (SMBL)

Always

Below 1 Ω

E91-29 (SML) - A40-1 (SML)

E91-23 (SMGL) - A40-4 (SMGL)

E91-1 (SMBL) - Body ground

Always

10 kΩ or higher

E91-29 (SML) - Body ground

E91-23 (SMGL) - Body ground

Tester Connection

Condition

Specified Condition

E91-2 (SMBR) - A46-7 (SMBR)

Always

Below 1 Ω

E91-10 (SMR) - A46-1 (SMR)

E91-24 (SMGR) - A46-4 (SMGR)

E91-2 (SMBR) - Body ground

Always

10 kΩ or higher

E91-10 (SMR) - Body ground

E91-24 (SMGR) - Body ground
OK

6.

CHECK HEADLIGHT SWIVEL MOTOR (OPERATION)

(a) Temporarily replace the headlight with a new or normally functioning one.

(b) Check for DTCs LIGHTING (EXT): LIGHTING SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

OK:

DTC B2412 or B2413 output does not occur.

OK
