Radio Receiver Power Source Circuit |
DESCRIPTION
This circuit provides power to the radio receiver.

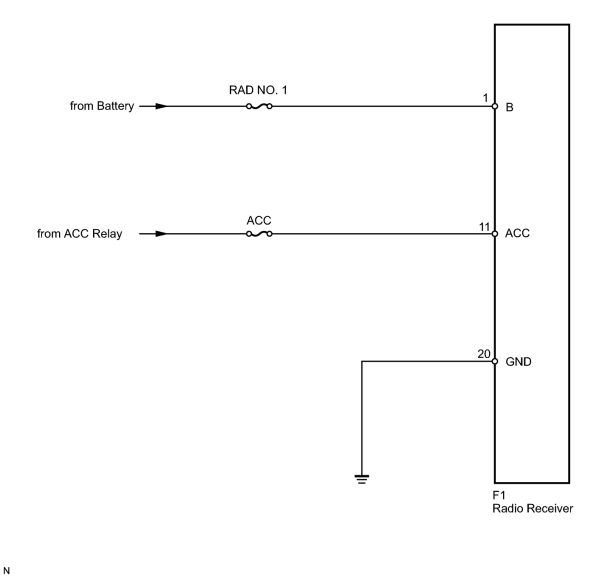

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT FUSE (RAD NO. 1, ACC) |
(a) Disconnect the RAD NO. 1 fuse from the engine room relay block.
(b) Disconnect the ACC fuse from the main body ECU.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
RAD NO. 1 fuse |
Always |
Below 1 Ω |
|
ACC fuse |
|
|
2. |
CHECK HARNESS AND CONNECTOR (RECEIVER - BATTERY AND BODY GROUND) |
|
(a) Disconnect the F1 receiver connector. |
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
F1-20 (GND) - Body ground |
Always |
Below 1 Ω |
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
F1-1 (B) - Body ground |
Always |
11 to 14 V |
|
F1-11 (ACC) - Body ground |
Engine switch on (ACC) |
11 to 14 V |
|
|
|
