| Title: BRAKE SYSTEM (OTHER): BRAKE LINE: SYSTEM DIAGRAM (2008 LX570) | ||
SYSTEM DIAGRAM
HINT:

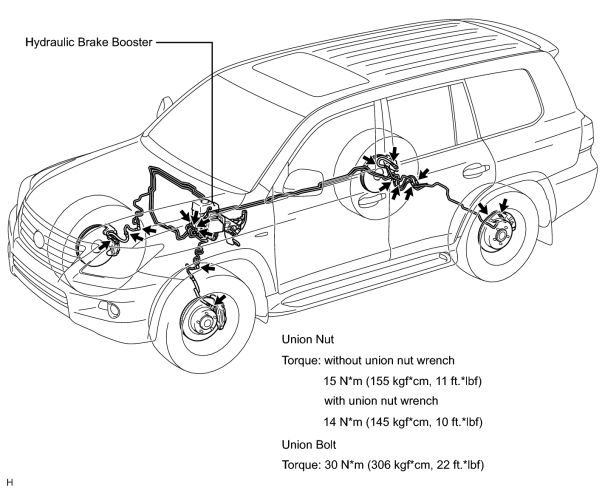

Refer to the diagram below to confirm the locations and tightening torque of the flexible hoses and brake tubes.
|
|
