Driver Side Seat Belt Warning Light does not Operate |
DESCRIPTION
When the engine switch is on (IG), the center airbag sensor transmits front seat inner belt state signals to the combination meter through the CAN. If the driver seat belt is not fastened, the combination meter blinks the driver side seat belt warning light. If the seat belt is fastened, the warning light turns off.

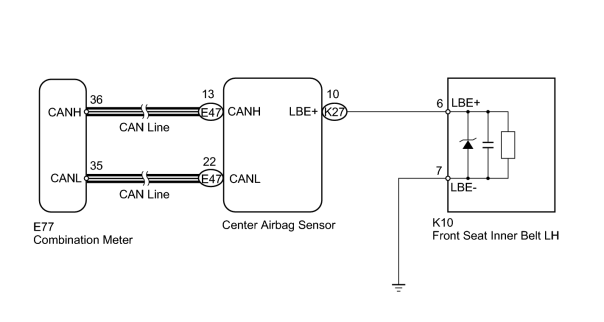

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK FOR DTC |
(a) Check for DTCs.
Result
|
Result |
Proceed to |
|---|---|
|
DTC is not output |
A |
|
CAN system DTC is output |
B |
|
Airbag system DTC is output |
C |
|
|
2. |
PERFORM ACTIVE TEST USING TECHSTREAM |
(a) Operate the Techstream according to the steps on the display and select Active Test.
Combination Meter
|
Item |
Test Part |
Control Range |
Diagnostic Note |
|---|---|---|---|
|
Driver Side Seat Belt |
Driver side seat belt warning light |
ON or OFF |
Confirm that the Vehicle is Stopped and Engine Idling |
OK:
Driver side seat belt warning light condition can be switched by Active Test.
|
|
3. |
REPLACE CENTER AIRBAG SENSOR ASSEMBLY |
(a) Temporarily replace the center airbag sensor with a new one
.
|
|
4. |
CHECK DRIVER SIDE SEAT BELT WARNING LIGHT |
(a) Check the driver side seat belt warning light function
.
OK:
Driver side seat belt warning light operates normally.
|
|
|
