Microphone Circuit between Overhead J/B and Multi-display |
DESCRIPTION
w/o LEXUS Link System:
This circuit sends a microphone signal from the microphone to the multi-display. It also supplies power from the multi-display to the microphone.
w/ LEXUS Link System:
This circuit sends a microphone signal from the microphone to the display and module display through the telephone ECU assembly. It also supplies power from the telephone ECU assembly to the microphone.

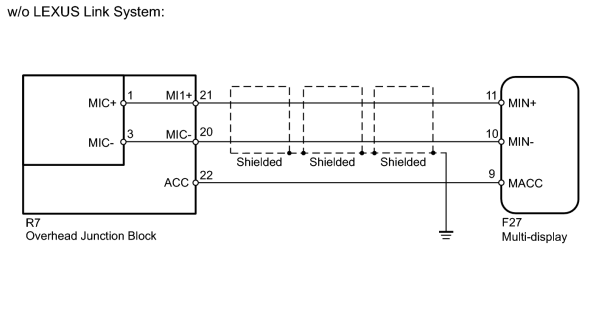

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK DISPLAY AND NAVIGATION MODULE DISPLAY OR MULTI-DISPLAY |
|
(a) Check the waveform of the microphone using an oscilloscope.
|
|
|
2. |
CHECK LEXUS LINK SYSTEM |
(a) Check if the vehicle is equipped with the LEXUS link system.
Result
|
Result |
Proceed to |
|---|---|
|
w/o LEXUS Link System |
A |
|
w/ LEXUS Link System |
B |
|
|
3. |

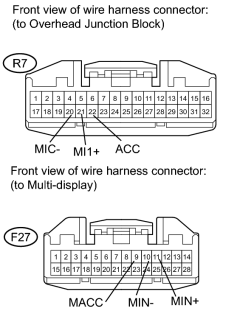

CHECK HARNESS AND CONNECTOR (OVERHEAD JUNCTION BLOCK - MULTI-DISPLAY) |
|
(a) Disconnect the R7 overhead junction block connector. |
(b) Disconnect the F27 display connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
F27-9 (MACC) - R7-22 (ACC) |
Always |
Below 1 Ω |
|
F27-11 (MIN+) - R7-21 (MI1+) |
Always |
Below 1 Ω |
|
F27-10 (MIN-) - R7-20 (MIC-) |
Always |
Below 1 Ω |
|
F27-9 (MACC) - Body ground |
Always |
10 kΩ or higher |
|
F27-11 (MIN+) - Body ground |
Always |
10 kΩ or higher |
|
F27-10 (MIN-) - Body ground |
Always |
10 kΩ or higher |
|
|
4. |
CHECK MULTI-DISPLAY (MACC VOLTAGE) |
|
(a) Reconnect the F27 display connector. |
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
F27-9 (MACC) - Body ground |
Engine switch on (ACC) |
4 to 6 V |
Result
|
Result |
Proceed to |
|---|---|
|
OK |
A |
|
NG (w/ Navigation System) |
B |
|
NG (w/o Navigation System) |
C |
|
|
5. |
CHECK MICROPHONE ASSEMBLY |
|
(a) Remove the microphone from the overhead junction block
|
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 (MIC+) - 3 (MIC-) |
Always |
1.9 to 2.2 kΩ |
|
|
6. |

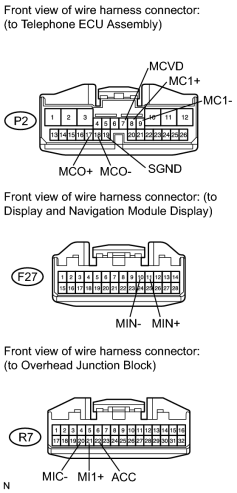

CHECK HARNESS AND CONNECTOR (TELEPHONE ECU - MULTI-DISPLAY AND OVERHEAD JUNCTION BLOCK) |
|
(a) Disconnect the P2 ECU connector. |
(b) Disconnect the F27 display connector.
(c) Disconnect the R7 junction block connector.
(d) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
P2-17 (MCO+) - F27-11 (MIN+) |
Always |
Below 1 Ω |
|
P2-18 (MCO-) - F27-10 (MIN-) |
Always |
Below 1 Ω |
|
P2-7 (MCVD) - R7-22 (ACC) |
Always |
Below 1 Ω |
|
P2-8 (MC1+) - R7-21 (MI1+) |
Always |
Below 1 Ω |
|
P2-9 (MC1-) - R7-20 (MIC-) |
Always |
Below 1 Ω |
|
P2-17 (MCO+) - Body ground |
Always |
10 kΩ or higher |
|
P2-18 (MCO-) - Body ground |
Always |
10 kΩ or higher |
|
P2-19 (SGND) - Body ground |
Always |
10 kΩ or higher |
|
P2-7 (MCVD) - Body ground |
Always |
10 kΩ or higher |
|
P2-8 (MC1+) - Body ground |
Always |
10 kΩ or higher |
|
P2-9 (MC1-) - Body ground |
Always |
10 kΩ or higher |
|
|
7. |
CHECK TELEPHONE ECU ASSEMBLY (TACC VOLTAGE) |
|
(a) Reconnect the P2 ECU connector. |
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
P2-7 (MCVD) - Body ground |
Engine switch on (ACC) |
4 to 6 V |
|
|
8. |
CHECK MICROPHONE ASSEMBLY |
|
|
(a) Remove the microphone from the overhead junction block
|
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 (MIC+) - 3 (MIC-) |
Always |
1.9 to 2.2 kΩ |
|
|
|
