Home Audio/Visual/Telematics Audio/Video REAR SEAT ENTERTAINMENT SYSTEM
Last Modified: 11-27-2007 1.6 J
Service Category: Audio/Visual/Telematics Section: Audio/Video
Model Year: 2008 Model: LX570 Doc ID: RM0000015J300KX
Title: AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: DESCRIPTION (2008 LX570)

Sound Signal Circuit between Video Terminal and Multi-display Controller

DESCRIPTION

This is the sound signal circuit from the video (video adapter) terminal to the multi-display selector.

HINT:

"Multi-display Controller" refers to the multi-display selector.

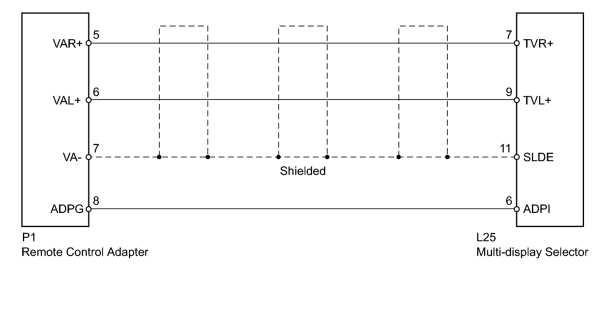

WIRING DIAGRAM



INSPECTION PROCEDURE

PROCEDURE

1.

CHECK MULTI-DISPLAY SELECTOR


(a) Disconnect the L25 selector connector.

(b) Using an oscilloscope, check the signal waveform between each terminal and the body ground according to the conditions shown in the chart below.

OK:

Tester Connection

Condition

Specified Condition

L25-9 (TVL+) - Body ground

Audio sound is being produced

A waveform synchronized with sound is output

L25-7 (TVR+) - Body ground

OK

2.

CHECK HARNESS AND CONNECTOR (REMOTE CONTROL ADAPTER - MULTI-DISPLAY SELECTOR)

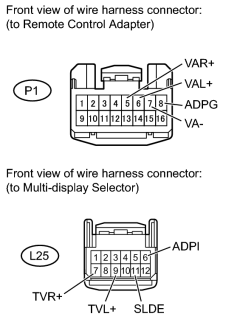

(a) Disconnect the P1 adapter connector.

(b) Disconnect the L25 selector connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

P1-5 (VAR+) - L25-7 (TVR+)

Always

Below 1 Ω

P1-6 (VAL+) - L25-9 (TVL+)

P1-7 (VA-) - L25-11 (SLDE)

P1-8 (ADPG) - L25-6 (ADPI)

L25-7 (TVR+) - Body ground

Always

10 kΩ or higher

L25-9 (TVL+) - Body ground

L25-11 (SLDE) - Body ground

L25-6 (APDI) - Body ground

OK
