REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
-
w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
-
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
2. REMOVE REAR WHEEL
3. REMOVE SKID CONTROL SENSOR WIRE
|

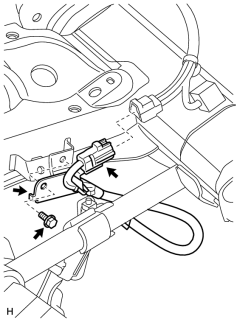

(a) Disconnect the speed sensor LH connector. |
(b) Detach the 2 clamps and remove the bolt and sensor clamp.
(c) Detach the 5 clamps.
(d) Detach the 3 clamps.
|
(e) Disconnect the speed sensor RH connector. |
|
(f) Remove the bolt. |
|
(g) Disconnect the connector, and remove the bolt and skid control sensor wire. |
4. REMOVE REAR SPEED SENSOR LH
|
(a) Remove the nut and speed sensor. NOTICE:
Pull out the sensor while trying as much as possible not to rotate it. |
5. REMOVE REAR SPEED SENSOR RH
|
(a) Remove the nut and speed sensor. NOTICE:
Pull out the sensor while trying as much as possible not to rotate it. |
|
|
