ADJUSTMENT
1. INSPECT BACK DOOR PANEL SUB-ASSEMBLY

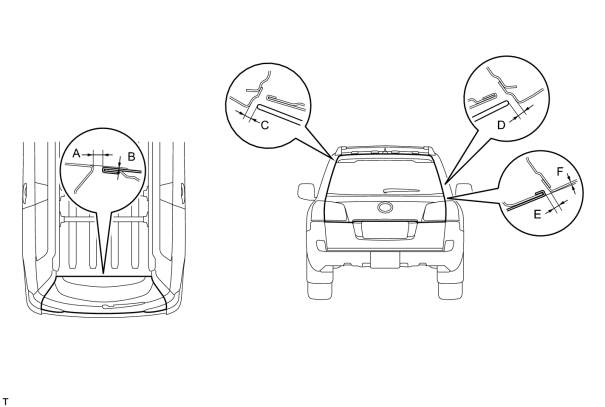

(a) Check that the clearance measurements of areas A to F are within the standard range.
Standard:
|
Area |
Specified Condition |
Area |
Specified Condition |
|---|---|---|---|
|
A |
5.7 to 8.7 mm (0.224 to 0.343 in.) |
D |
3.75 to 6.75 mm (0.148 to 0.266 in.) |
|
B |
0.0 to 3.0 mm (0.000 to 0.118 in.) |
E |
2.7 to 5.7 mm (0.106 to 0.224 in.) |
|
C |
3.75 to 6.75 mm (0.148 to 0.266 in.) |
F |
-1.4 to 1.6 mm (-0.0551 to 0.0630 in.) |
2. ADJUST REAR SWING GATE LOCK STRIKER
|
(a) Check that the door fit and door linkages are adjusted correctly. |
(b) Using a T40 "TORX" socket, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.
(c) Using a T40 "TORX" socket, tighten the striker mounting screws after the adjustment.
Torque: 12 N·m (122 kgf·cm, 9 ft·lbf)
3. ADJUST BACK DOOR PANEL SUB-ASSEMBLY
|
(a) Loosen the hinge bolts. |
(b) Adjust the back door by moving it up and down and left and right so that the dimensions are within the specified range.
(c) Tighten the hinge bolts.
Torque: 19 N·m (194 kgf·cm, 14 ft·lbf)
(d) Detach the seat belt anchor cover
.
|
(e) Loosen the hinge nuts. |
(f) Adjust the back door by moving it up and down and forward and backward so that the dimensions are within the specified range.
(g) Tighten the hinge nuts.
Torque: 19 N·m (194 kgf·cm, 14 ft·lbf)
(h) Attach the seat belt anchor cover
.
|
|
