Indicator Circuit |
DESCRIPTION

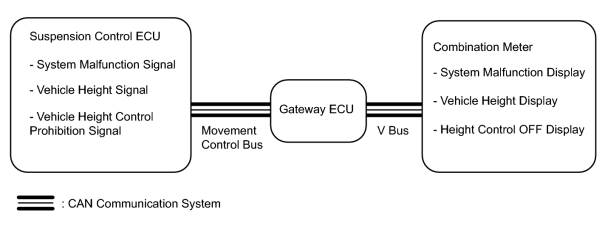

The multi-information display in the combination meter displays the vehicle height, the state of the height control OFF switch, and system malfunctions. To display items, the multi-information display uses CAN communication between the combination meter and suspension control ECU via the gateway ECU.
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK ECUS CONNECTED TO CAN BUS |
(a) Turn the engine switch off.
(b) Connect the Techstream to the DLC3.
(c) Check the ECUs connected to the CAN bus
.
Result
|
Result |
Proceed to |
|---|---|
|
No malfunction appears |
A |
|
Malfunction appears |
B |
|
|
|
