| Last Modified: 11-27-2007 | 1.6 D | |
| Service Category: Suspension | Section: Suspension Control System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000001CU1006X |
| Title: SUSPENSION CONTROL: ACTIVE HEIGHT CONTROL SUSPENSION: DIAGNOSIS SYSTEM (2008 LX570) | ||
DIAGNOSIS SYSTEM
1. DIAGNOSIS SYSTEM
|

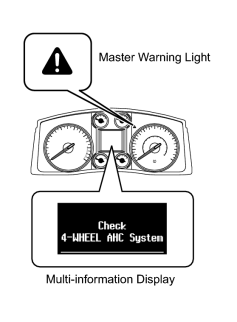

(a) If a malfunction is detected in the active height control suspension, the master warning light illuminates, and "Check 4-WHEEL AHC System" is displayed on the multi-information display. |
(b) Test mode
(1) By switching from normal mode into test mode, the front acceleration sensor, rear acceleration sensor and suspension control switch can be inspected
.
2. INITIAL CHECK
|
(a) The initial check operates for approximately 3 seconds after the engine switch is turned on (IG). Therefore, the vehicle height information does not display on the height control indicator in the multi-information display. After the initial check is finished, the vehicle height information is displayed. |
|
|
