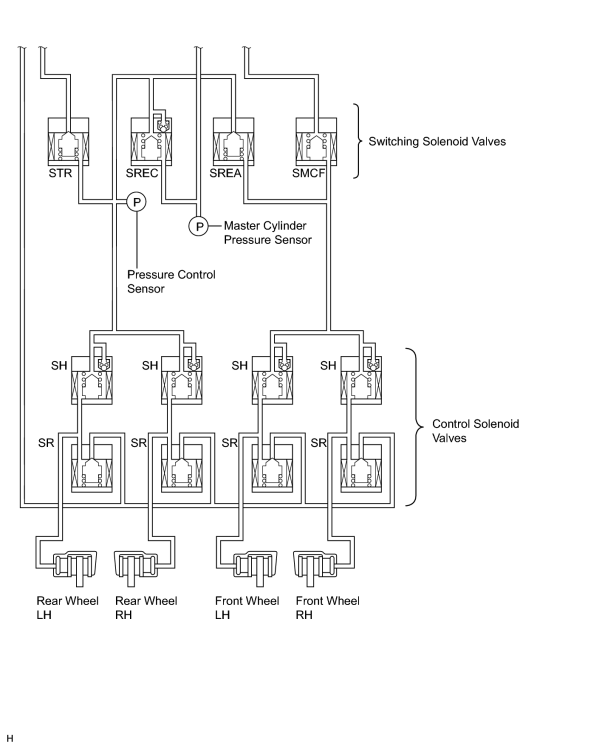

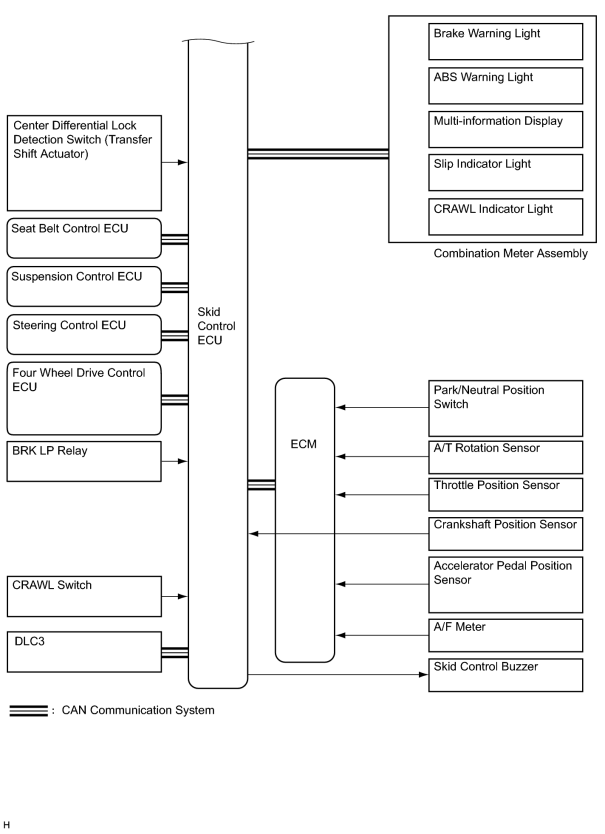

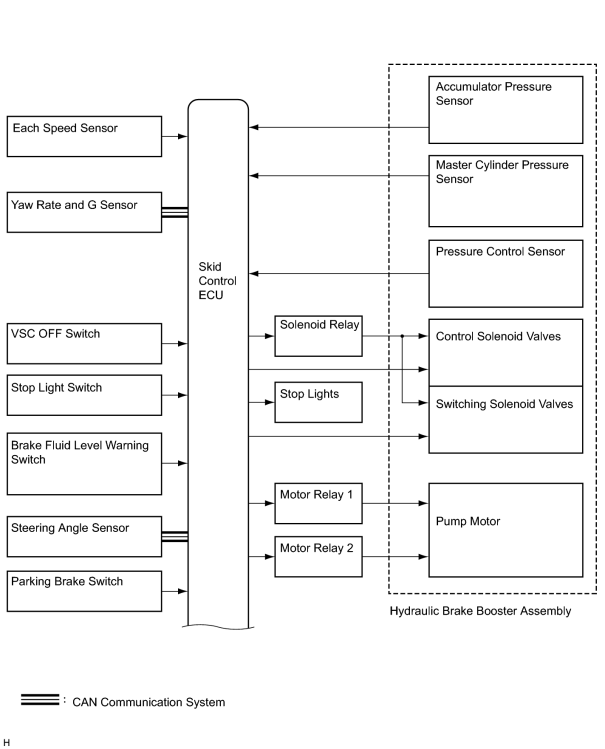

SYSTEM DIAGRAM
|
Transmitting ECU (Transmitter) |
Receiving ECU |
Signal |
Communication Method |
|---|---|---|---|
|
ECM |
Skid control ECU |
Shift position signal |
CAN communication system |
|
ECM |
Skid control ECU |
A/T rotation signal |
CAN communication system |
|
ECM |
Skid control ECU |
Throttle position signal |
CAN communication system |
|
ECM |
Skid control ECU |
Engine speed signal |
CAN communication system |
|
ECM |
Skid control ECU |
Accelerator pedal position signal |
CAN communication system |
|
ECM |
Skid control ECU |
Engine torque signal |
CAN communication system |
|
Skid control ECU |
ECM |
Yaw rate and G signal |
CAN communication system |
|
Skid control ECU |
ECM |
Steering angle signal |
CAN communication system |
|
Skid control ECU |
ECM |
Engine torque request signal |
CAN communication system |
|
Skid control ECU |
Suspension control ECU |
Yaw rate and G signal |
CAN communication system |
|
Skid control ECU |
Suspension control ECU |
Steering angle signal |
CAN communication system |
|
Skid control ECU |
Seat belt control ECU |
Yaw rate and G signal |
CAN communication system |
|
Skid control ECU |
Seat belt control ECU |
Steering angle signal |
CAN communication system |
|
Four wheel drive control ECU |
Skid control ECU |
L4 signal |
CAN communication system |
|
Four wheel drive control ECU |
Skid control ECU |
Center differential lock signal |
CAN communication system |
|
Skid control ECU |
Four wheel drive control ECU |
Yaw rate and G signal |
CAN communication system |
|
Skid control ECU |
Four wheel drive control ECU |
Steering angle signal |
CAN communication system |
|
Steering control ECU |
Skid control ECU |
Steering actuator angle signal |
CAN communication system |
|
|
