| Last Modified: 11-27-2007 | 1.6 C | |
| Service Category: Brake | Section: Brake Control/Dynamic Control System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000001DXG00JX |
| Title: BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
C1203/53 |
ECM Communication Circuit Malfunction |
DESCRIPTION
The circuit is used to send control information from the skid control ECU to the ECM, and engine control information from the ECM to the skid control ECU via the CAN communication system.
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
C1203/53 |
The engine/drivetrain specification and/or destination information from the ECM does not match the skid control ECU data. |
ECM |

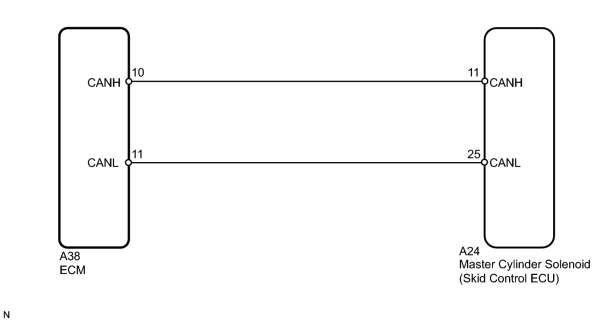

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK DTC (for Engine Control System) |
(a) Check if the engine control system DTC is output
.
Result
|
Result |
Proceed to |
|---|---|
|
DTC is not output. |
A |
|
DTC is output. |
B |
|
|
|
