Home › Brake › Brake Control/Dynamic Control System › BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM
Last Modified: 11-27-2007 1.6 J
Service Category: Brake Section: Brake Control/Dynamic Control System
Model Year: 2008 Model: LX570 Doc ID: RM000001DY000OX
Title: BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: DESCRIPTION (2008 LX570)

Slip Indicator Light does not Come ON

DESCRIPTION

The slip indicator light blinks during VSC, A-TRAC, CRAWL or hill-start assist control operation.

When the system fails, the slip indicator light comes on to warn the driver BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: DIAGNOSIS SYSTEM (2008 LX570) .

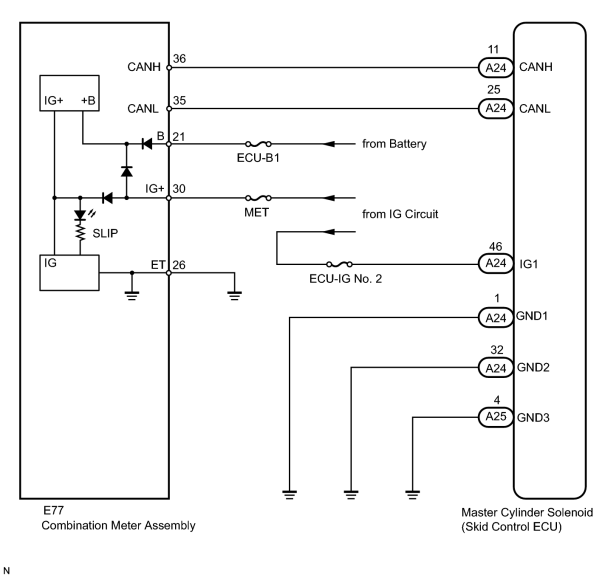

WIRING DIAGRAM

INSPECTION PROCEDURE

Refer to "Slip Indicator Light Remains On" BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: DESCRIPTION (2008 LX570) .
