| Title: SEAT: CLIMATE CONTROL SEAT SYSTEM: SYSTEM DIAGRAM (2008 LX570) | ||

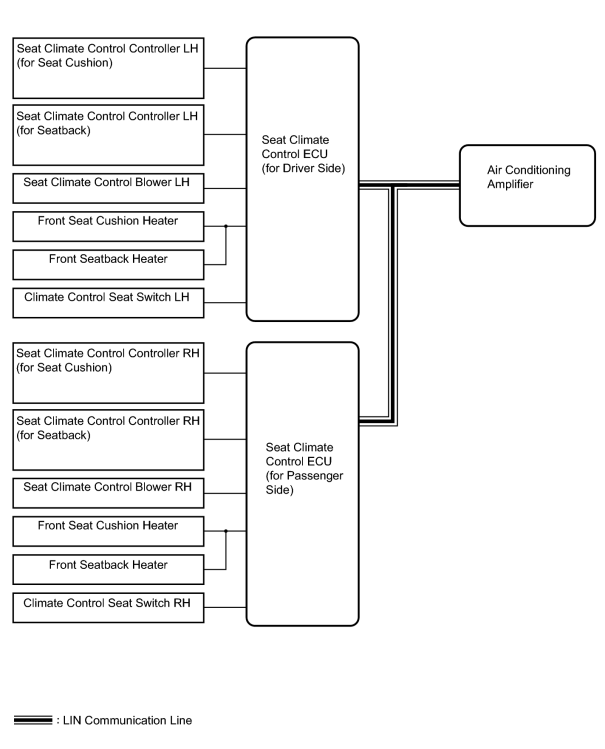

SYSTEM DIAGRAM
Communication Table
|
Sender |
Receiver |
Signal |
Line |
|---|---|---|---|
|
Climate control ECU |
A/C amplifier |
A/C signal |
LIN |
|
|
