- SFRH or SFRR circuit
- Master cylinder solenoid
| Last Modified: 11-27-2007 | 1.6 C | |
| Service Category: Brake | Section: Brake Control/Dynamic Control System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000001EA200KX |
| Title: BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
C0226/21 |
SFR Solenoid Circuit |
|
DTC |
C0236/22 |
SFL Solenoid Circuit |
|
DTC |
C0246/23 |
SRR Solenoid Circuit |
|
DTC |
C0256/24 |
SRL Solenoid Circuit |
|
DTC |
C1225/25 |
SMC Solenoid Circuit |
|
DTC |
C1226/26 |
SPC Solenoid Circuit |
|
DTC |
C1227/27 |
SRC Solenoid Circuit |
|
DTC |
C1228/28 |
STR Solenoid Circuit |
DESCRIPTION
The solenoid turns on when signals are received from the ECU and controls the pressure acting on the wheel cylinders, thus controlling braking force.
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
C0226/21 |
An open or short circuit in the SFRH or SFRR circuit continues for 0.05 seconds or more. |
|
|
C0236/22 |
An open or short circuit in the SFLH or SFLR circuit continues for 0.05 seconds or more. |
|
|
C0246/23 |
An open or short circuit in the SRRH or SRRR circuit continues for 0.05 seconds or more. |
|
|
C0256/24 |
An open or short circuit in the SRLH or SRLR circuit continues for 0.05 seconds or more. |
|
|
C1225/25 |
An open or short circuit in the SMCF circuit continues for 0.05 seconds or more. |
|
|
C1226/26 |
An open or short circuit in the SREA circuit continues for 0.05 seconds or more. |
|
|
C1227/27 |
An open or short circuit in the SREC circuit continues for 0.05 seconds or more. |
|
|
C1228/28 |
An open or short circuit in the STR circuit continues for 0.05 seconds or more. |
|

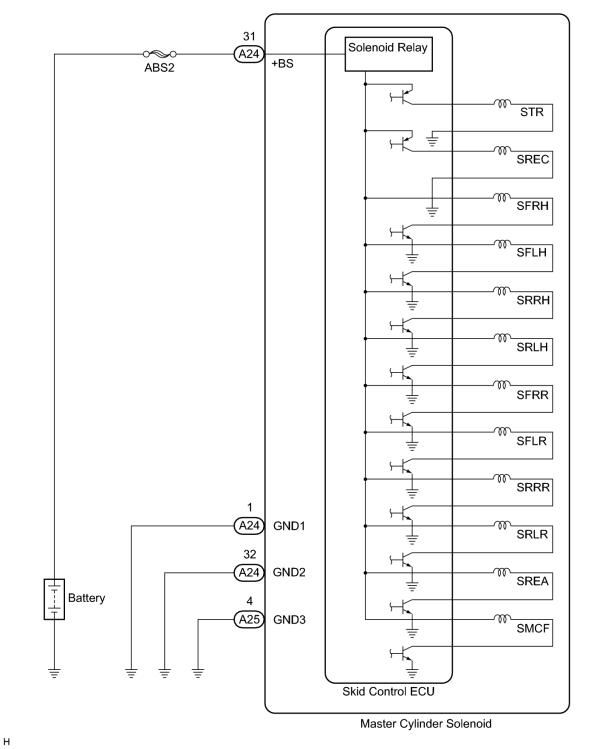

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
When replacing the master cylinder solenoid, perform zero point calibration
.
PROCEDURE
|
1. |
RECONFIRM DTC |
HINT:
These codes are stored when a problem is detected in the master cylinder solenoid.
The solenoid circuit is in the master cylinder solenoid.
Therefore, solenoid circuit inspection and solenoid unit inspection cannot be performed. Be sure to check if any DTC is output before replacing the master cylinder solenoid.
(a) Clear the DTCs
.
(b) Drive the vehicle at a speed of approximately 32 km/h (20 mph) or more for 60 seconds or more.
(c) Check if the same DTCs are output
.
Result
|
Result |
Proceed to |
|---|---|
|
DTC is output. |
A |
|
DTC is not output. |
B |
|
|
|
