- Telephone ECU assembly
- Map light assembly (Mayday switch)
- Harness or connector
| Last Modified: 11-27-2007 | 1.6 C | |
| Service Category: Audio/Visual/Telematics | Section: Cellular Communication | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000001EFZ00DX |
| Title: CELLULAR COMMUNICATION: LEXUS LINK SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
4-1 |
Red LED Error |
DESCRIPTION
This DTC is stored when one of the following occurs: 1) the telephone ECU assembly is malfunctioning; 2) the red LED is malfunctioning; or 3) the wire harness between the telephone ECU assembly and map light (mayday switch) is open or shorted.
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
4-1 |
Communication or the communication line is abnormal between the telephone ECU assembly and map light (mayday switch). |
|

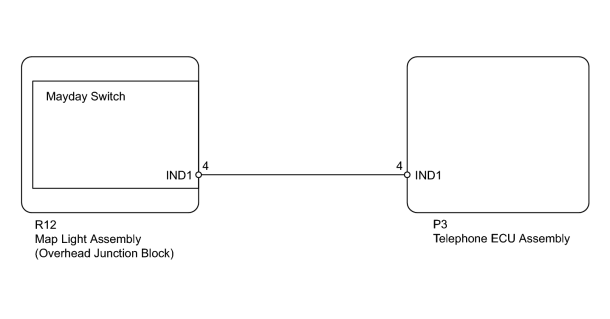

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |

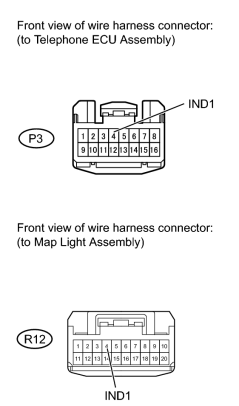

CHECK HARNESS AND CONNECTOR (TELEPHONE ECU ASSEMBLY - MAP LIGHT ASSEMBLY) |
(a) Disconnect the P3 ECU connector.
(b) Disconnect the R12 map light connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
P3-4 (IND1) - R12-4 (IND1) |
Always |
Below 1 Ω |
|
P3-4 (IND1) or R12-4 (IND1) - Body ground |
Always |
10 kΩ or higher |
|
|
2. |
CHECK MAP LIGHT ASSEMBLY (RED LED OPERATION) |
(a) Temporarily replace the map light with a new or normally functioning one
.
(b) Check that the system operates normally.
OK:
Red LED operates normally.
|
|
3. |
REPLACE TELEPHONE ECU ASSEMBLY TOGETHER WITH MAYDAY BATTERY |
|
|
|
