Title: CELLULAR COMMUNICATION: LEXUS LINK SYSTEM: DESCRIPTION (2008 LX570)

DTC

4-2

Green LED Error

DESCRIPTION

This DTC is stored when one of the following occurs: 1) the telephone ECU assembly is malfunctioning; 2) the green LED is malfunctioning; or 3) the wire harness between the telephone ECU assembly and map light assembly (mayday switch) is open or shorted.

DTC Code

DTC Detection Condition

Trouble Area

4-2

Communication or the communication line is abnormal between the telephone ECU assembly and map light (mayday switch).
  • Telephone ECU assembly
  • Map light assembly (Mayday switch)
  • Harness or connector

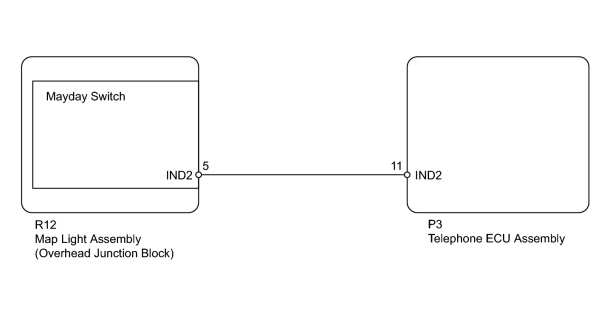

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

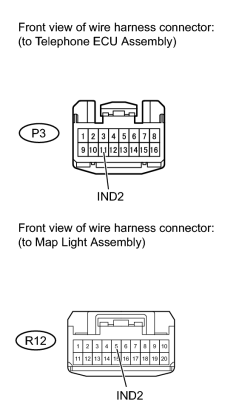

CHECK HARNESS AND CONNECTOR (TELEPHONE ECU ASSEMBLY - MAP LIGHT ASSEMBLY)


(a) Disconnect the P3 ECU connector.

(b) Disconnect the R12 map light connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

P3-11 (IND2) - R12-5 (IND2)

Always

Below 1 Ω

P3-11 (IND2) or R12-5 (IND2) - Body ground

Always

10 kΩ or higher
OK

2.

CHECK MAP LIGHT ASSEMBLY (GREEN LED OPERATION)

(a) Temporarily replace the map light with a new or normally functioning one LIGHTING (INT): ROOM LIGHT (for Front): REMOVAL (2008 LX570) .

(b) Check that the system operates normally.

OK:

Green LED operates normally.

OK

3.

REPLACE TELEPHONE ECU ASSEMBLY TOGETHER WITH MAYDAY BATTERY
NEXT
