| Title: CELLULAR COMMUNICATION: LEXUS LINK SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
4-6 |
SERVICES, PHONE or PTT Button has Connection Error |
DESCRIPTION
This DTC is stored when one of the following occurs: 1) the telephone ECU assembly is malfunctioning; 2) the mayday switch on the map light assembly is malfunctioning; or 3) the wire harness between the telephone ECU assembly and the map light is open.
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
4-6 |
Communication or the communication line is abnormal between the telephone ECU assembly and map light (mayday switch). |
|

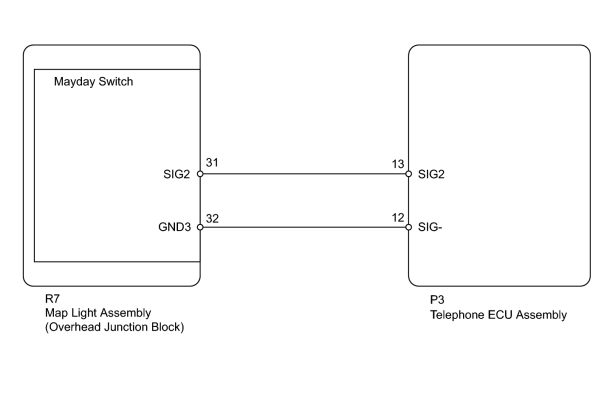

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK HARNESS AND CONNECTOR (TELEPHONE ECU ASSEMBLY - MAP LIGHT ASSEMBLY) |

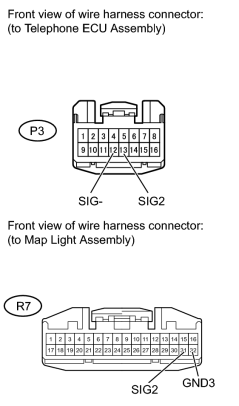

(a) Disconnect the P3 ECU connector.
(b) Disconnect the R7 map light connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
P3-13 (SIG2) - R7-31 (SIG2) |
Always |
Below 1 Ω |
|
P3-12 (SIG-) - R7-32 (GND3) |
Always |
Below 1 Ω |
|
|
2. |
INSPECT MAP LIGHT ASSEMBLY (MAYDAY SWITCH) |
(a) Remove the map light
.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
31 (SIG2) - 32 (GND3) |
SERVICES button is pressed |
305 to 313 Ω |
|
31 (SIG2) - 32 (GND3) |
Phone button is pressed |
812 to 831 Ω |
|
31 (SIG2) - 32 (GND3) |
PTT button is pressed |
1811 to 1848 Ω |
|
|
3. |
REPLACE TELEPHONE ECU ASSEMBLY TOGETHER WITH MAYDAY BATTERY |
|
|
|
