Title: HEATING / AIR CONDITIONING: FRONT EVAPORATOR TEMPERATURE SENSOR: INSPECTION (2008 LX570)

INSPECTION

1. INSPECT FRONT EVAPORATOR TEMPERATURE SENSOR

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

-10°C (14°F)

7.30 to 9.10 kΩ

1 - 2

-5°C (23°F)

5.65 to 6.95 kΩ

1 - 2

0°C (32°F)

4.40 to 5.35 kΩ

1 - 2

5°C (41°F)

3.40 to 4.15 kΩ

1 - 2

10°C (50°F)

2.70 to 3.25 kΩ

1 - 2

15°C (59°F)

2.14 to 2.58 kΩ

1 - 2

20°C (68°F)

1.71 to 2.05 kΩ

1 - 2

25°C (77°F)

1.38 to 1.64 kΩ

1 - 2

30°C (86°F)

1.11 to 1.32 kΩ

If the result is not as specified, replace the front evaporator temperature sensor.

NOTICE:

  • Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
  • When measuring, the sensor temperature must be almost the same as the ambient temperature.

HINT:

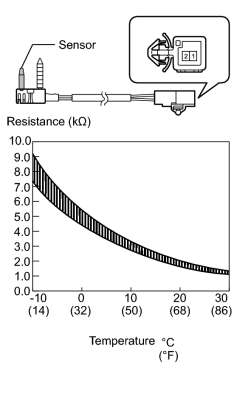

As the temperature increases, the resistance decreases (see the graph).
