| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Brake | Section: Brake System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000001HJU00HX |
| Title: BRAKE (FRONT): FRONT BRAKE FLEXIBLE HOSE: REMOVAL (2008 LX570) | ||
REMOVAL
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
1. REMOVE FRONT WHEEL
2. DRAIN BRAKE FLUID
NOTICE:
Wash off brake fluid immediately if it comes in contact with any painted surface.
3. REMOVE FRONT FLEXIBLE HOSE
|
(a) Remove the union bolt and gasket, and then disconnect the flexible hose. |
|
(b) Remove the bolt. |

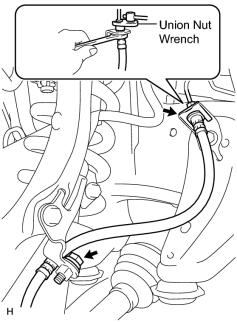

(c) Remove the brake tube from the flexible hose with a union nut wrench while holding the flexible hose with a wrench.
NOTICE:
- Do not bend or damage the brake tube.
- Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting point.
(d) Remove the clip and flexible hose.
|
|
