- Front seat inner belt switch signal (for driver side)
- Front seat inner belt switch signal (for passenger side)
- Occupant detection signal
| Last Modified: 11-27-2007 | 1.6 U | |
| Service Category: Vehicle Interior | Section: Seat Belt | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000001OC701BX |
| Title: SEAT BELT: SEAT BELT WARNING SYSTEM: SYSTEM DIAGRAM (2008 LX570) | ||

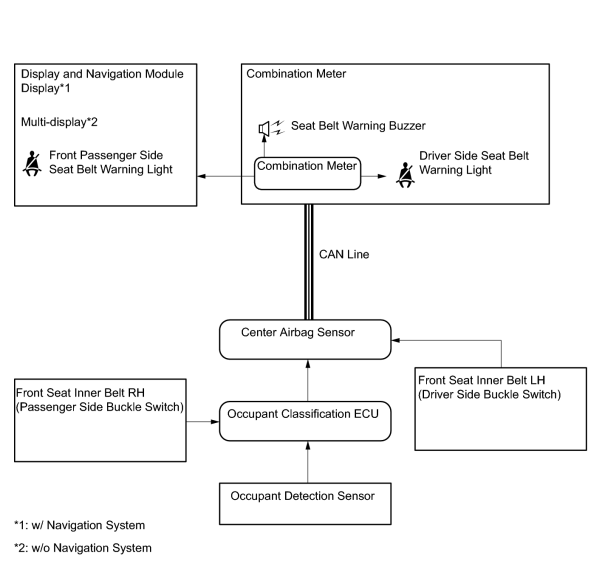

SYSTEM DIAGRAM
Communication Table
|
Sender |
Receiver |
Signal |
Line |
|---|---|---|---|
|
Center Airbag Sensor |
Combination Meter |
|
CAN |
|
|
