| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Brake | Section: Brake System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000001Q8J00FX |
| Title: BRAKE SYSTEM (OTHER): BRAKE PEDAL: DISASSEMBLY (2008 LX570) | ||
DISASSEMBLY

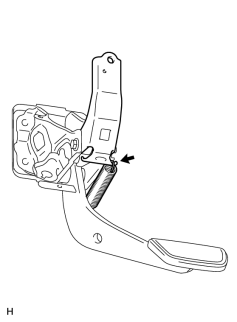

1. REMOVE BRAKE PEDAL RETURN SPRING
|
(a) Remove the return spring. |
2. REMOVE BRAKE PEDAL SUPPORT REINFORCEMENT
|
(a) Remove the bolt and nut, then remove the brake pedal support reinforcement from the brake pedal support sub-assembly. |
3. REMOVE BRAKE PEDAL SUB-ASSEMBLY
|
(a) Remove the bolt and nut, then remove the brake pedal sub-assembly from the brake pedal support sub-assembly. |
(b) Remove the 4 brake pedal bushes from the brake pedal and brake pedal lever.
(c) Remove the 2 collars from the brake pedal sub-assembly and brake pedal lever.
4. REMOVE BRAKE PEDAL LEVER SUB-ASSEMBLY
|
(a) Using a screwdriver, remove the 2 E-rings from the brake pedal link. |
(b) Remove the 2 brake pedal links and 2 brake pedal shaft collars.
(c) Remove the brake pedal lever from the brake pedal sub-assembly.
5. REMOVE BRAKE PEDAL PAD
|
(a) Remove the brake pedal pad from the brake pedal sub-assembly. |
6. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
(a) Remove the stop light switch mounting adjuster from the brake pedal support.
7. REMOVE BRAKE PEDAL SUPPORT SUB-ASSEMBLY
|
|
