NETWORKING: CAN COMMUNICATION SYSTEM: DESCRIPTION (2008 LX570)

Home › Power Source/Network › Networking › CAN COMMUNICATION SYSTEM

Last Modified: 11-27-2007		1.6 J
Service Category: Power Source/Network	Section: Networking
Model Year: 2008	Model: LX570	Doc ID: RM000001RTD00JX
Title: NETWORKING: CAN COMMUNICATION SYSTEM: DESCRIPTION (2008 LX570)

Air Conditioning Amplifier Communication Stop Mode

DESCRIPTION

Detection Item	Symptom	Trouble Area
Air Conditioning Amplifier Communication Stop Mode	When either condition below is met: "Air Conditioner" is not displayed on "CAN Bus Check". Applies to "Air Conditioning Amplifier Communication Stop Mode" in "DTC Combination Table".	Power source or inside air conditioning amplifier assembly Air conditioning amplifier branch wire or connector Air conditioning amplifier assembly

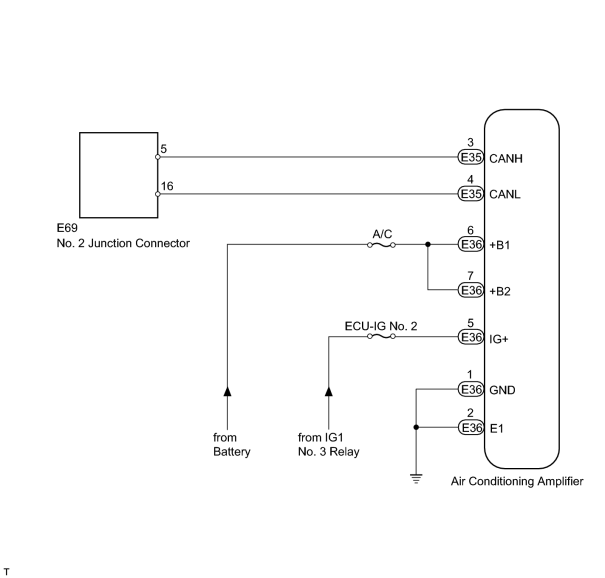

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

PROCEDURE

1.	DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

(a) Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

w/ Navigation System:

After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

When disconnecting the cable, some systems need to be initialized after the cable is reconnected .

2.	CHECK FOR OPEN IN CAN BUS WIRE (AIR CONDITIONING AMPLIFIER BRANCH WIRE)

(a) Disconnect the E35 air conditioning amplifier connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
E35-3 (CANH) - E35-4 (CANL)	Engine switch off	54 to 69 Ω

3.	CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BATTERY AND BODY GROUND)

(a) Connect the cable to the negative (-) battery terminal.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected .

(b) Disconnect the E36 air conditioning amplifier connector.

Standard Resistance:

Tester Connection	Condition	Specified Condition
E36-1 (GND) - Body ground	Always	Below 1 Ω
E36-2 (E1) - Body ground	Always	Below 1 Ω

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
E36-6 (+B1) - Body ground	Always	11 to 14 V
E36-7 (+B2) - Body ground	Always	11 to 14 V
E36-5 (IG+) - Body ground	Engine switch on (IG)	11 to 14 V
