Title: SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: SYSTEM DIAGRAM (2008 LX570)

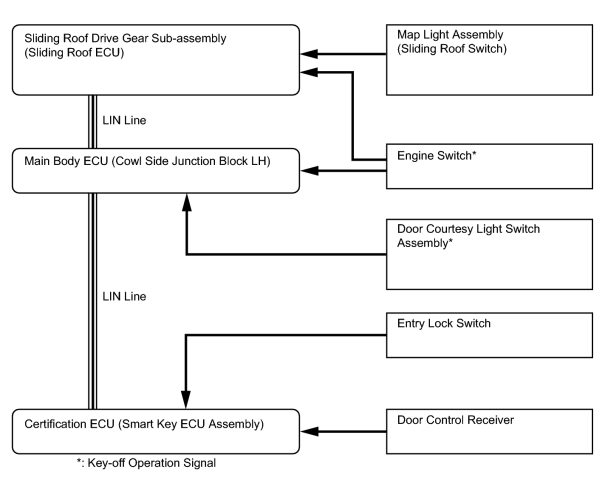

SYSTEM DIAGRAM



Communication Table

Sender

Receiver

Signal

Line

Main Body ECU

Sliding Roof ECU
  • Key-off operation signal (Engine switch status)
  • Key-off operation signal (Courtesy switch status)
  • Key-linked open/close operation

LIN

Certification ECU (Smart Key ECU Assembly)

Sliding Roof ECU
  • Transmitter-linked open operation signal
  • Entry lock switch-linked close operation

LIN
