| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Vehicle Interior | Section: Door Lock | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000001VYW007X |
| Title: DOOR LOCK: BACK DOOR LOCK: INSPECTION (2008 LX570) | ||
INSPECTION

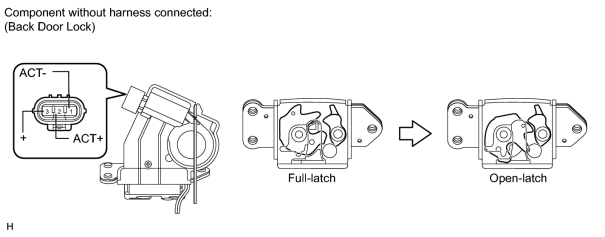

1. INSPECT BACK DOOR LOCK ASSEMBLY
(a) Set the back door lock to the full-latch position.
(b) Apply battery voltage to the door motor connector and check the operation of the door lock motor.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → 2 (ACT+) Battery negative (-) → 1 (ACT-) |
Moves to open-latch position |
If the result is not as specified, replace the back door lock assembly.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 (ACT-) - 3 (+) |
Open-latch |
Below 1 Ω |
|
1 (ACT-) - 3 (+) |
Full-latch |
10 kΩ or higher |
If the result is not as specified, replace the back door lock assembly.

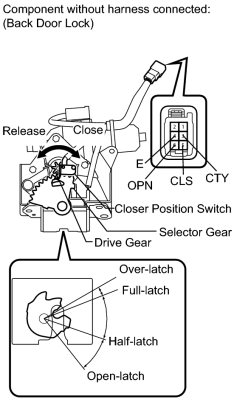

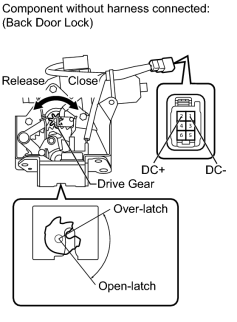

2. INSPECT BACK DOOR LOCK ASSEMBLY (w/ Power Back Door)
|
(a) Inspect the closer motor operation. (1) Set the back door lock assembly to the full-latch position. (2) Apply battery voltage and check the operation of the door lock motor. OK:
If the result is not as specified, replace the back door lock assembly. (3) Set the back door lock assembly to the half-latch position. (4) Apply battery voltage and check the operation of the door lock motor. OK:
If the result is not as specified, replace the back door lock assembly. |
|
(b) Measure the resistance according to the value(s) in the table below. Standard Resistance:
Closer Position Switch:
Back Door Courtesy Switch:
If the result is not as specified, replace the back door lock assembly. |
|
|
