| Title: DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DIAGRAM (2008 LX570) | ||

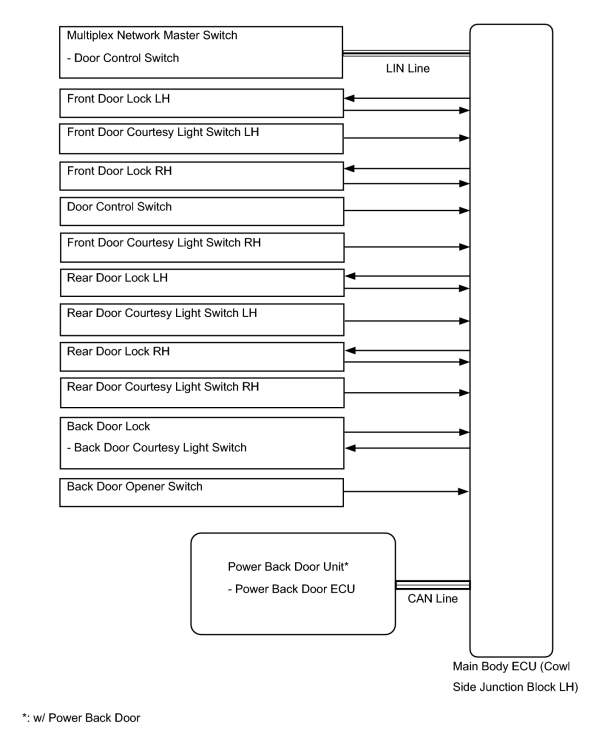

SYSTEM DIAGRAM
Communication Table
|
Sender |
Receiver |
Signal |
Line |
|---|---|---|---|
|
Master Switch |
Main Body ECU |
Driver side door manual lock switch signal |
LIN |
|
|
