| Title: WIPER / WASHER: WIPER SWITCH: INSPECTION (2008 LX570) | ||
INSPECTION
1. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY
|

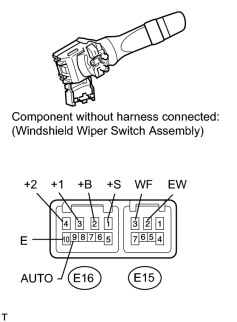

(a) Check the front wiper switch. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the windshield wiper switch assembly. |
(b) Check the front washer switch.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
E15-2 (EW) - E15-3 (WF) |
On |
Below 1 Ω |
|
Off |
10 kΩ or higher |
If the result is not as specified, replace the windshield wiper switch assembly.
|

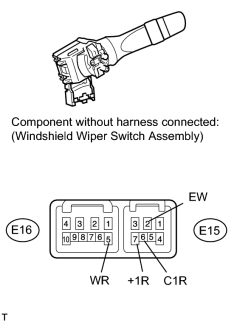

(c) Check the rear wiper switch. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the windshield wiper switch assembly. |
(d) Check the rear washer switch.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
E15-2 (EW) - E16-5 (WR) |
On |
Below 1 Ω |
|
Off |
10 kΩ or higher |
If the result is not as specified, replace the windshield wiper switch assembly.
|
|
