Title: THEFT DETERRENT / KEYLESS ENTRY: SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function): DESCRIPTION (2008 LX570)

DTC

B2281

"P" Signal Malfunction

DESCRIPTION

This DTC is stored when there is an abnormal circuit between the main body ECU and the shift lock control ECU.

DTC Code

Detection Condition

Trouble Area

B2281

Communication or the communication line between the main body ECU and shift lock control ECU is abnormal.

  • Main body ECU
  • Shift lock control ECU
  • Harness or connector

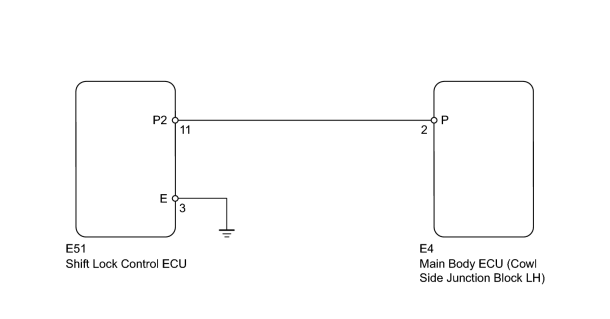

WIRING DIAGRAM



INSPECTION PROCEDURE

PROCEDURE

1.

READ VALUE USING TECHSTREAM (SHIFT P SIGNAL)

(a) Use the Data List to check if the shift position signal is functioning properly.

Main Body

Tester Display

Measurement Item/Range

Normal Condition

Diagnostic Note

Shift P Signal

Shift P position signal/ON or OFF

ON: Shift lever in P

OFF: Shift lever not in P

-

Result

Result

Proceed to

Display on the Techstream does not change according to shift lever operation

A

Display on the Techstream changes according to shift lever operation

B

A

2.

INSPECT SHIFT LOCK CONTROL ECU SUB-ASSEMBLY



(a) Disconnect the E51 shift lock control ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

11 (P2) - 3 (E)

Shift lever not in P

Below 1 Ω

11 (P2) - 3 (E)

Shift lever in P

10 kΩ or higher

OK

3.

CHECK HARNESS AND CONNECTOR (SHIFT LOCK CONTROL ECU - MAIN BODY ECU AND BODY GROUND)



(a) Disconnect the E4 main body ECU connector.

(b) Disconnect the E51 shift lock control ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

E4-2 (P) - E51-11 (P2)

Always

Below 1 Ω

E51-3 (E) - Body ground

Always

Below 1 Ω

E4-2 (P) or E51-11 (P2) - Body ground

Always

10 kΩ or higher

OK
