Title: WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: SYSTEM DIAGRAM (2008 LX570)

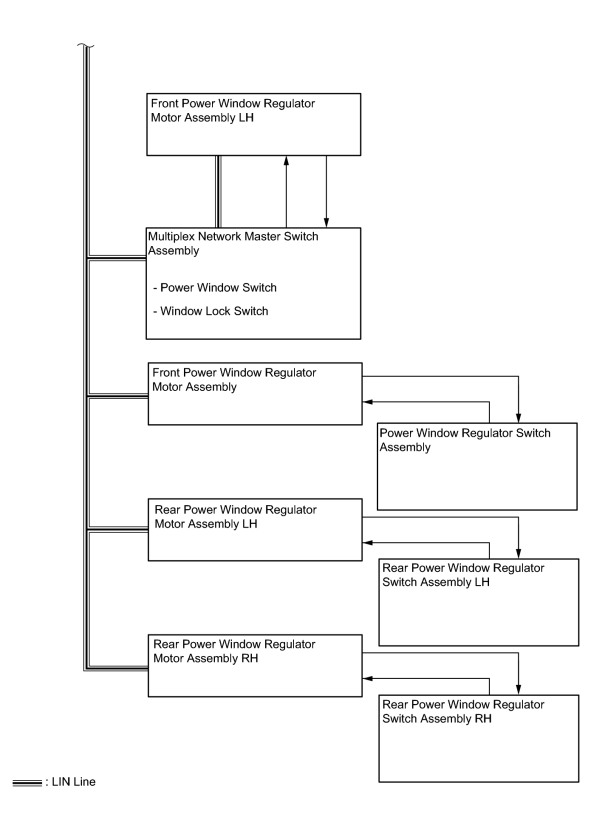

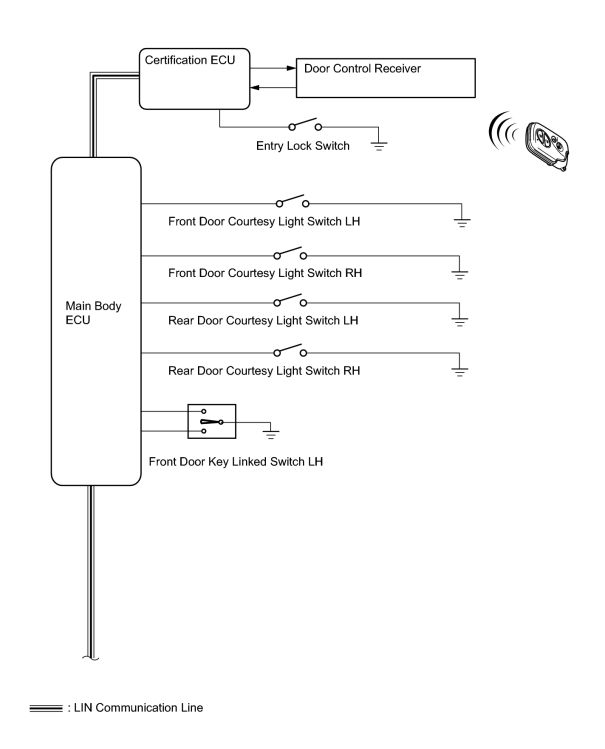

SYSTEM DIAGRAM





Sender

Receiver

Signal

Line

Multiplex network master switch assembly
  • Front power window regulator motor assembly LH
  • Front power window regulator motor assembly RH
  • Rear power window regulator motor assembly LH
  • Rear power window regulator motor assembly RH

Power window up/down signal

LIN

Main body ECU
  • Multiplex network master switch
  • Front power window regulator motor assembly RH
  • Rear power window regulator motor assembly LH
  • Rear power window regulator motor assembly RH
  • Key-linked power window up and down signal
  • Wireless power window down signal
  • Entry power window up signal

LIN

Certification ECU

Main body ECU
  • Wireless power window down signal
  • Entry power window up signal

LIN
