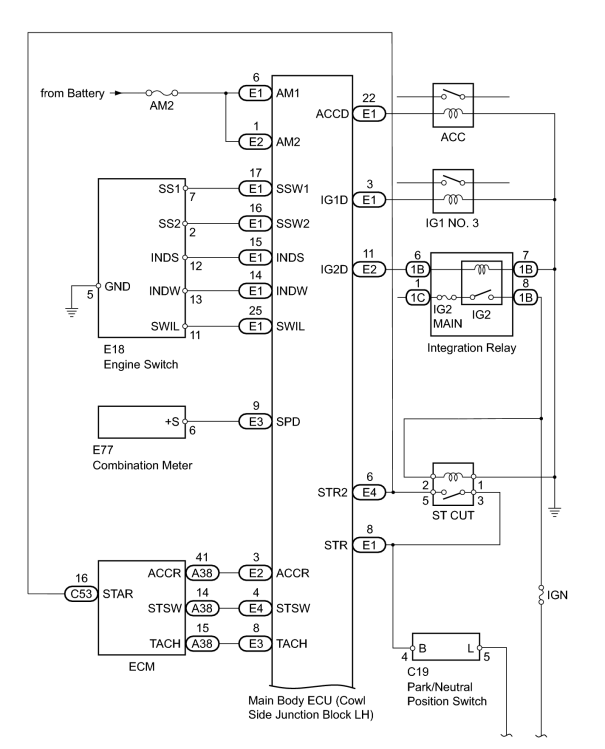

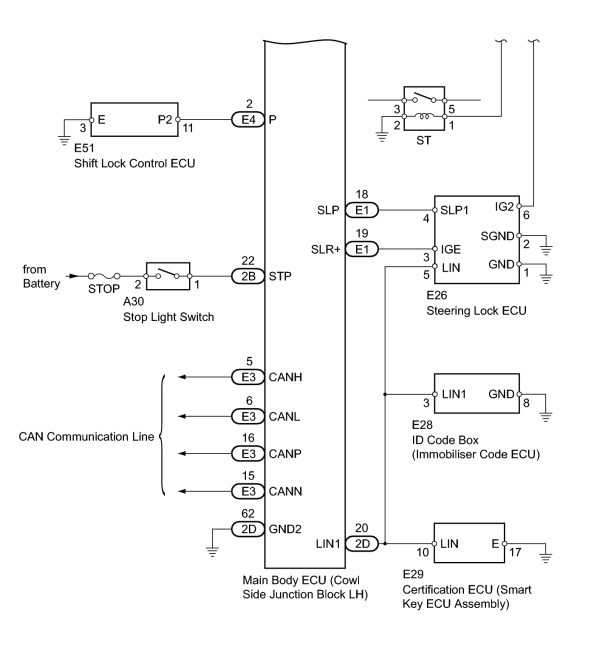

SYSTEM DIAGRAM
Communication Table
|
Sender |
Receiver |
Signal |
Line |
|---|---|---|---|
|
ECM |
Main body ECU |
Engine speed signal |
CAN |
|
Combination meter |
Main body ECU |
Vehicle speed signal |
CAN |
|
Steering lock ECU |
Main body ECU |
Steering lock/unlock signal |
LIN |
|
Certification ECU (Smart key ECU assembly) |
Main body ECU |
LIN master signal |
LIN |
|
Main body ECU |
ID code box (Immobiliser code ECU) |
ID required signal |
LIN |
|
Main body ECU |
Certification ECU (Smart key ECU assembly) |
Key existence condition signal |
LIN |
|
|
