Title: SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: DESCRIPTION (2008 LX570)

DTC

B1610/13

Front Airbag Sensor RH Malfunction

DESCRIPTION

The front airbag sensor RH consists of the diagnostic circuit and the frontal deceleration sensor, etc.

If the center airbag sensor receives signals from the frontal deceleration sensor, it determines whether the SRS should be activated.

DTC B1610/13 is stored when a malfunction is detected in the front airbag sensor RH circuit.

DTC Code

DTC Detection Condition

Trouble Area

B1610/13

When one of the following conditions is met:

  • A front airbag sensor RH malfunction.
  • A center airbag sensor malfunction.
  • Front airbag sensor RH
  • Center airbag sensor assembly

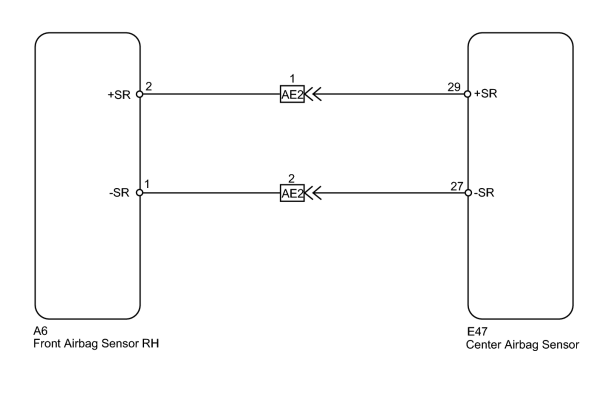

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:

PROCEDURE

1.

CHECK FRONT AIRBAG SENSOR RH


(a) Turn the engine switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Interchange the front airbag sensor LH with RH and connect the connectors to them.

(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(e) Turn the engine switch on (IG), and wait for at least 60 seconds.

(f) Clear the DTCs stored in the memory SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

(g) Turn the engine switch off.

(h) Turn the engine switch on (IG), and wait for at least 60 seconds.

(i) Check for DTCs SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

Result

Result

Proceed to

DTC B1610 is output

A

DTC B1615 is output

B

DTC B1610 and B1615 are not output

C

HINT:

Codes other than DTC B1610 and B1615 may be output at this time, but they are not related to this check.

C
