| Title: FRONT SUSPENSION: FRONT LOWER SUSPENSION ARM: DISASSEMBLY (2008 LX570) | ||
DISASSEMBLY
1. REMOVE FRONT NO. 1 LOWER ARM BUSH LH
(a) Using a chisel and hammer, pry the flange of the bush outward.
|

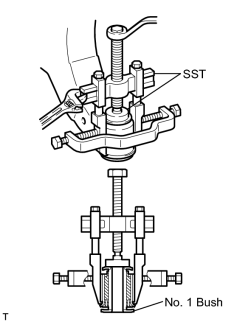

(b) Using SST, remove the bush. SST: 09950-40011 09951-04010 09952-04010 09953-04020 09954-04010 09955-04011 09957-04010 09958-04011 SST: 09950-60010 09951-00540 |
2. REMOVE FRONT NO. 2 LOWER ARM BUSH LH
(a) Using a chisel and hammer, pry the flange of the bush outward.
|

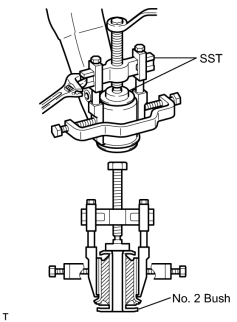

(b) Using SST, remove the bush. SST: 09950-40011 09951-04010 09952-04010 09953-04020 09954-04020 09955-04011 09957-04010 09958-04011 SST: 09950-60010 09951-00650 |
3. REMOVE FRONT NO. 1 SPRING BUMPER LH
(a) Remove the 2 No. 1 spring bumpers from the vehicle.
|
|
