1. INSTALL FRONT NO. 1 SPRING BUMPER LH

(a) Install the 2 No. 1 spring bumpers.

Torque: 31 N·m (316 kgf·cm, 23 ft·lbf)

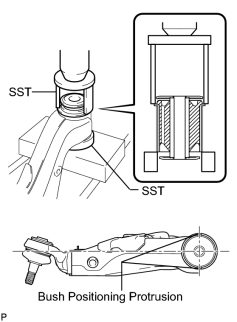

2. INSTALL FRONT NO. 2 LOWER ARM BUSH LH

(a) Using SST and a press, press in a new bush.

SST: 09710-26011

09710-05081

NOTICE:

Press the bush while making sure the bush positioning protrusions are perpendicular to the lower arm, as shown in the illustration.

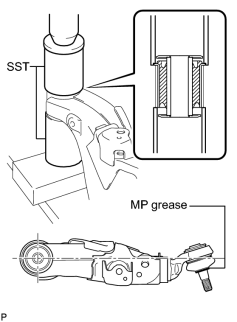

3. INSTALL FRONT NO. 1 LOWER ARM BUSH LH

(a) Using SST and a press, press in a new bush.

SST: 09223-00010

SST: 09612-30012

(b) Apply MP grease to the locations shown in the illustration.

NOTICE:

Do not apply MP grease to the tapered or threaded parts of the ball joint.

4. INSTALL FRONT LOWER BALL JOINT ATTACHMENT LH

(a) Install the attachment with the nut and a new cotter pin.

Torque: 167 N·m (1703 kgf·cm, 123 ft·lbf)

NOTICE:

If the holes for the cotter pin are not aligned, tighten the nut further up to 60°.
