INSTALLATION

1. INSTALL CANISTER

(a) Install the canister with the 3 bolts.

Torque: 20 N·m (204 kgf·cm, 15 ft·lbf)

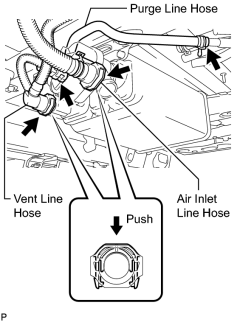

(b) Connect the wire harness clamp.

(c) Connect the vent line hose.

(1) Push the hose into the port and push the retainer to lock it.

NOTICE:

  • Check for damage or foreign objects on the connected part.
  • After connecting, check that the vent hose and the valve are securely connected by pulling on them.

(d) Connect the air inlet line hose.

(1) Push the hose into the port and push the retainer to lock it.

NOTICE:

  • Check for damage or foreign objects on the connected part.
  • After connecting, check that the vent hose and the valve are securely connected by pulling on them.

(e) Connect the purge line hose.

(f) Connect the connector.

2. INSTALL SPARE TIRE
