Title: 3UR-FE EMISSION CONTROL: CANISTER: REMOVAL (2008 LX570)

REMOVAL

1. REMOVE SPARE TIRE

2. REMOVE CANISTER

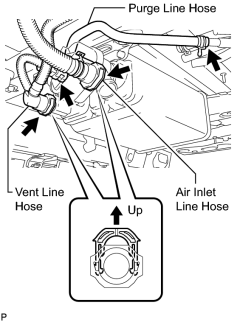

(a) Disconnect the connector.

(b) Disconnect the purge line hose.

(c) Disconnect the air inlet line hose.

(1) Pinch the retainer and then raise it, and disconnect the hose.

NOTICE:

  • Do not use any tools in this procedure.
  • Check for any dirt and foreign matter contamination in the valve and around the connector. Clean if necessary. Foreign matter may damage the O-rings or cause leaks in the seal between the valve and connector.

(d) Disconnect the vent line hose.

(1) Pinch the retainer and then raise it, and disconnect the hose.

NOTICE:

  • Do not use any tools in this procedure.
  • Check for any dirt and foreign matter contamination in the valve and around the connector. Clean if necessary. Foreign matter may damage the O-rings or cause leaks in the seal between the valve and connector.


(e) Disconnect the wire harness clamp.

(f) Remove the 3 bolts and canister.
