Title: LIGHTING (EXT): LIGHTING SYSTEM: DESCRIPTION (2008 LX570)

DTC

B2424

Headlight Leveling Motor LH Communication Malfunction

DTC

B2425

Headlight Leveling Motor RH Communication Malfunction

DESCRIPTION

The headlight leveling motor operates by receiving a signal from the AFS ECU. The AFS ECU detects the headlight leveling motor status using the signal from the headlight leveling motor.

DTC Code

DTC Detection Condition

Trouble Area

B2424

When either condition below is met:

  • Malfunction in the headlight leveling motor LH.
  • Open or short in the headlight leveling motor LH communication circuit.
  • Headlight leveling motor LH
  • Headlight LH
  • Harness or connector
  • AFS ECU

B2425

When either condition below is met:

  • Malfunction in the headlight leveling motor RH.
  • Open or short in the headlight leveling motor RH communication circuit.
  • Headlight leveling motor RH
  • Headlight RH
  • Harness or connector
  • AFS ECU

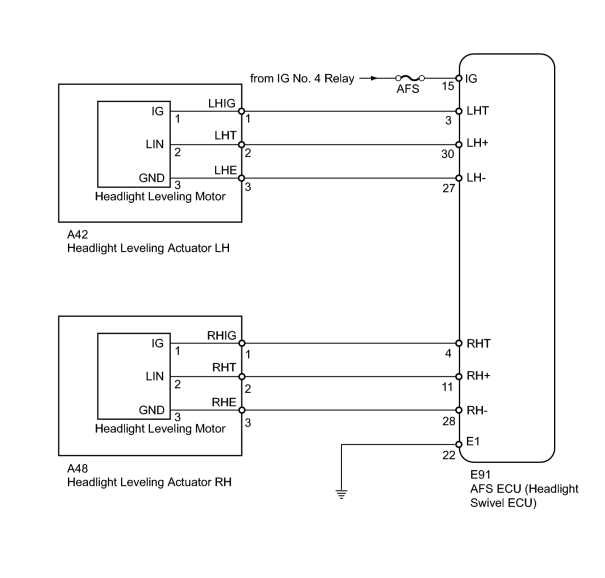

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

CHECK FOR DTC

(a) Clear the DTCs LIGHTING (EXT): LIGHTING SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

(b) Check for DTCs LIGHTING (EXT): LIGHTING SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

OK:

DTC B2424 or B2425 output does not occur.

OK

2.

READ VALUE USING TECHSTREAM (AFS ECU)

(a) Using the Techstream, read the Data List.

AFS

Tester Display

Measurement Item/Range

Normal Condition

Diagnostic Note

+B

AFS ECU power source voltage/Min.: 0 V, Max.: 19.75 V

11 to 14 V

-

OK:

Power supply voltage is 11 to 14 V.

OK

3.

CHECK HARNESS AND CONNECTOR (AFS ECU - BODY GROUND)

(a) Disconnect the E91 ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

E91-22 (E1) - Body ground

Always

Below 1 Ω
OK

4.

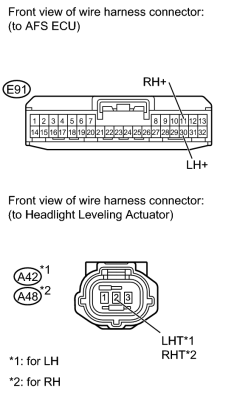

CHECK HARNESS AND CONNECTOR (AFS ECU - HEADLIGHT)


(a) Disconnect the E91 ECU connector.

(b) Disconnect the A42 and A48 actuator connectors.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

for LH

for RH

Tester Connection

Condition

Specified Condition

E91-30 (LH+) - A42-2 (LHT)

Always

Below 1 Ω

E91-30 (LH+) - Body ground

Always

10 kΩ or higher

Tester Connection

Condition

Specified Condition

E91-11 (RH+) - A48-2 (RHT)

Always

Below 1 Ω

E91-11 (RH+) - Body ground

Always

10 kΩ or higher
OK

5.

CHECK HEADLIGHT LEVELING MOTOR (OPERATION)

(a) Temporarily replace the headlight with a new or normally functioning one.

(b) Check for DTCs LIGHTING (EXT): LIGHTING SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

OK:

DTC B2424 or B2425 output does not occur.

OK
